Tight Tolerance CNC Machining Without Unpredictable Costs
When a drawing calls out ±0.01 mm or a bearing bore can’t drift, the risk isn’t only scrap—it’s schedule. Batnon helps you hold precision CNC machining tolerances while keeping cycle time, inspection effort, and pricing under control.
What Tight Tolerance Really Costs (And How To Control It)
Tighter tolerances raise cost for predictable reasons: slower cutting parameters, more stable fixturing, extra measurement, and sometimes iterative “cut–measure–adjust” loops. The goal is to tighten only what protects function—then build a process that hits CTQs on the first pass.
Control CTQs
Apply tight tolerance only to fit, seal, and alignment features. Use ISO 2768 for the rest.
Stabilize The Process
Fixturing, toolpath strategy, and probing reduce drift across runs and setups.
Measure Like You’ll Ship
Inspection method matters: CMM, pins, air gage, surface plate—match the CTQ.
Keep Pricing Predictable
DFM review catches over-spec, datum issues, and finish stack-up before quoting.
Tolerance Capability Table (Cost Factor Included)
These levels help buyers match function to price. For most industrial parts, ±0.01 mm is the best cost-performance balance; tighter specs should be limited to CTQs and verified with an appropriate inspection plan.
| Level | Tolerance (± inch / ± mm) | Cost Factor | Typical Application |
|---|---|---|---|
| Standard | 0.003937 in / 0.1 mm | 1.0× | Regular dimension |
| High Standard | 0.001969 in / 0.05 mm | 1.2× | Clearance holes, structural brackets |
| Tight | 0.000787 in / 0.02 mm | 1.5× | Bearing bores, locating pins |
| Precision | 0.000394 in / 0.01 mm | 2.0× | O-ring glands, press fits |
| High Precision | 0.000315 in / 0.008 mm | 2.5× | High-speed spindles, sealing surfaces |
| Ultra-Precision | 0.000197 in / 0.005 mm | 3.0× | Aviation, Aerospace, Rocket |
Need a tighter tolerance on a specific feature (e.g., ±0.0005 inch tolerance shop requirements)? Upload a drawing and we’ll confirm the process plan, measurement method, and pricing impact before you commit.

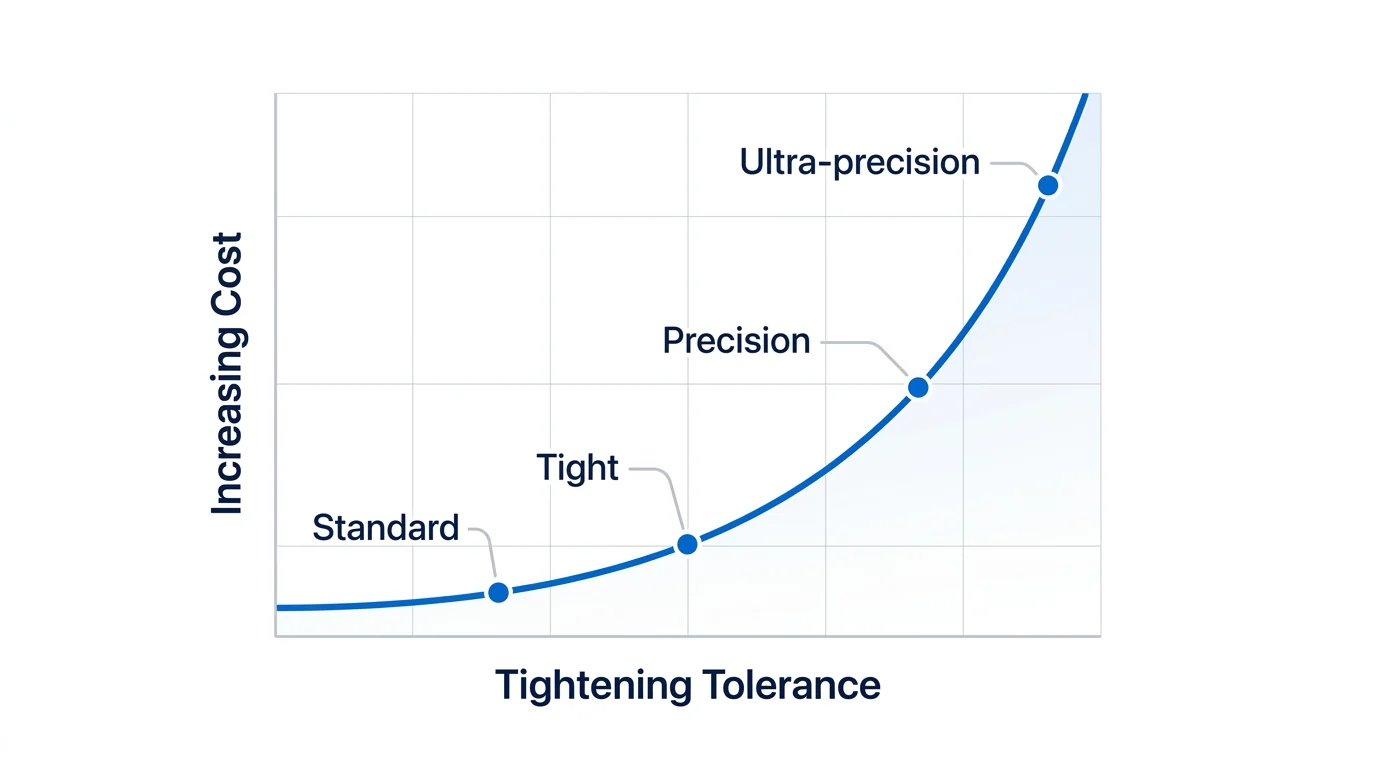

CNC Machining Tolerance Vs Cost: Why It Rises Fast
Cost doesn’t scale linearly with tolerance. Past a point, you pay for added inspection time, lower material removal rates, stability controls, and more iteration. The fastest way to reduce cost on tight tolerance machined parts is to tighten only what protects assembly function and call out a clear datum scheme.
Machine + Tool Deflection
Hard materials, long reach tools, and thin walls amplify deflection. Strategy matters.
Thermal Expansion
Large parts drift with temperature. Holding micron-level specs requires stability.
Measurement Time
Features that are hard to machine are often hard to measure—inspection drives cost.

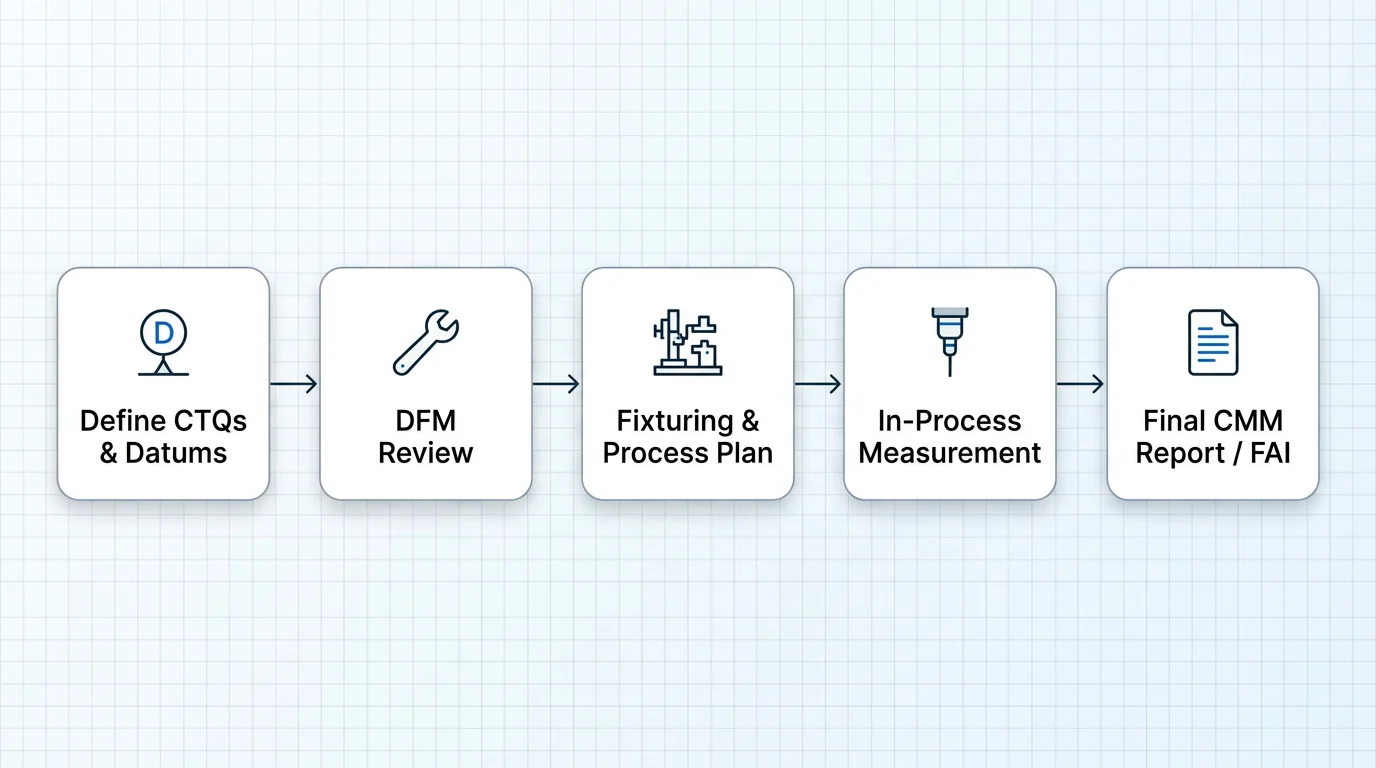

How We Hold Tight Tolerances Without Slowing You Down
Our process focuses on CTQs, stable fixturing, and inspection that matches how the part functions. This keeps precision CNC machining tolerances achievable without turning every feature into a premium-priced requirement.
Design Checklist: Tight Tolerances That Quote Fast
Most delays start with unclear datums, over-tightening, or missing information about finishing. Use this checklist to get an RFQ-ready package and avoid back-and-forth.
Define CTQs
Mark the few features that control fit and function: bearing seats, sealing surfaces, locating pins, press fits.
Use GD&T Where It Helps
When relationships matter more than size, use true position, profile, perpendicularity with a datum reference frame.
Clarify Finish Timing
Call out whether tolerances apply before or after anodize/plating—finish stack-up can change dimensions.
Inspection Evidence That Prevents Tolerance Disputes
If you need a CMM inspection report for CNC parts, or a First Article Inspection (FAI) to approve production, define the evidence level at quote time. We align measurement method to CTQs and datums to avoid “measured differently” arguments.
Dimensional Report
CTQ-focused measurements for the features that control assembly. Best for prototypes and fit checks.

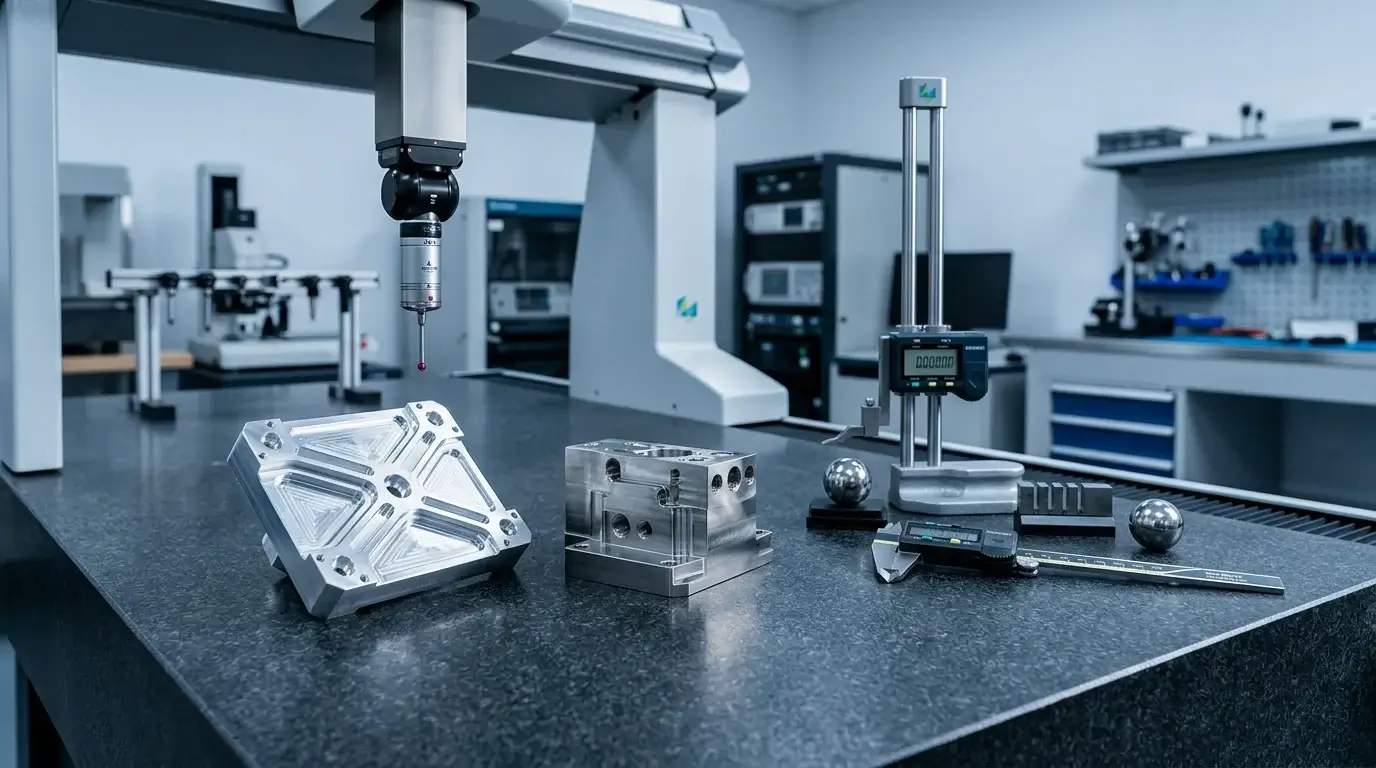

CMM Inspection Report
CMM report aligned to datums and GD&T callouts (true position, profiles, flatness) for complex geometry.
FAI / AS9102-Style
First Article Inspection (FAI) package to support release: drawing ballooning, measured values, certs as needed.
When To Request Tighter Tolerances
Use tighter tolerances on features that set alignment, seal, or motion. For the rest, ISO 2768 general tolerances can reduce cost without hurting function.
When A Process Change Is Needed
Extremely tight specs may require boring, reaming, grinding, lapping, or additional stabilization. We’ll flag this during DFM and quoting.

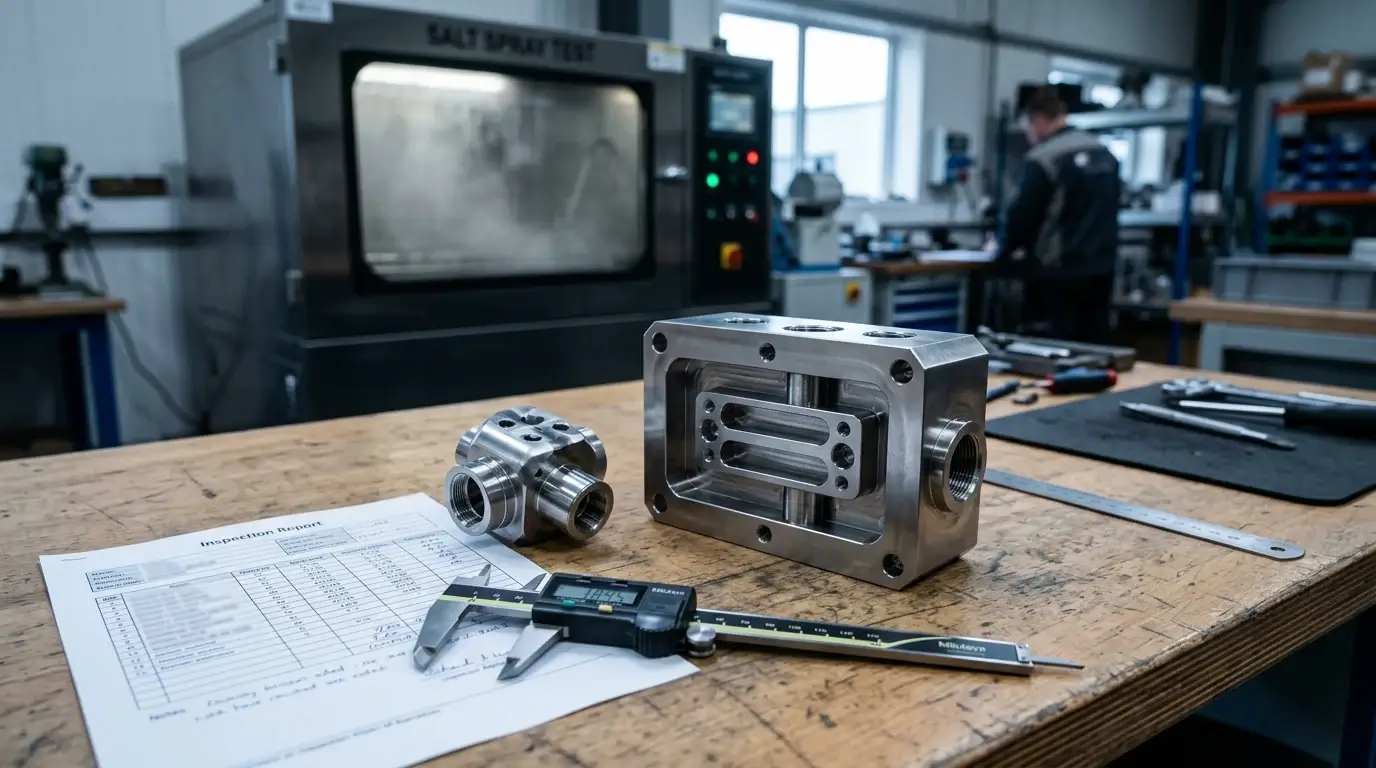

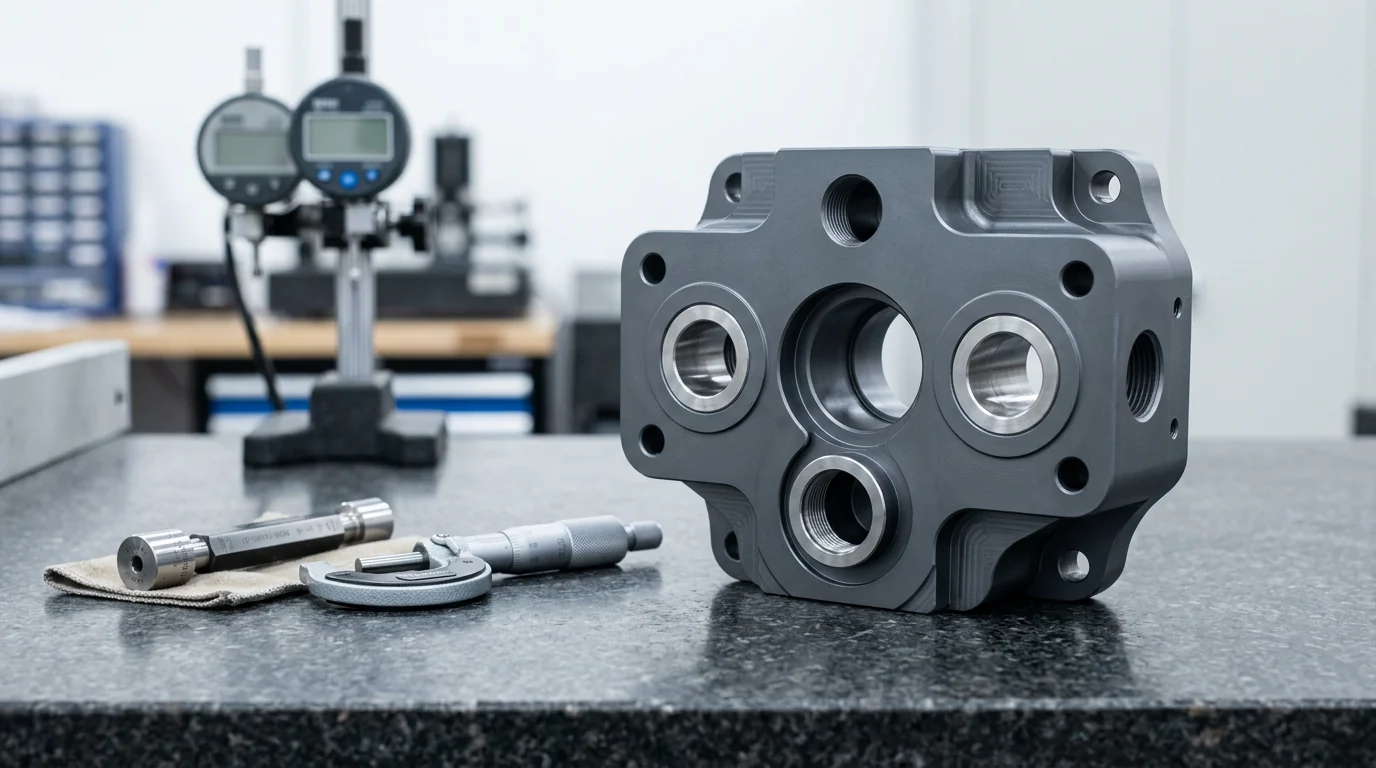

Case Studies: Precision That Protected Function (Not Just Specs)
These examples show how CTQs, datums, and inspection evidence reduce risk while keeping pricing competitive.
FAQ
Quick answers buyers use when turning tolerance requirements into an RFQ-ready package.
What Is A Reasonable Standard Tolerance For CNC Machining?
When Should I Specify ±0.01 Mm Or Tighter?
Why Do Tight Tolerances Increase Cost And Lead Time?
Is GD&T Better Than Tightening Every Dimension?
Do You Provide CMM Inspection Reports For CNC Parts?
What Is First Article Inspection (FAI) And When Is It Used?
How Do Surface Finishes Affect Tolerances?
What Should I Include In A Tight Tolerance RFQ To Get An Accurate Quote?
Precision CNC Tolerance Guide & Inspection Notes
This page explains how Batnon delivers tight tolerance CNC machining services, including precision CNC machining tolerances (±0.01 mm, high precision down to ±0.005 mm on CTQs), tolerance vs cost tradeoffs, GD&T and datum best practices, and inspection evidence options such as CMM inspection reports and FAI. If you are comparing suppliers for a ±0.0005 inch tolerance shop requirement, the fastest path is to upload your drawing, identify CTQs, and request the inspection level needed for approval.
