What is ABS CNC machining used for?

ABS (acrylonitrile butadiene styrene) is widely used for CNC machined prototypes and low-volume production parts where impact resistance, toughness, and a paintable surface are important—especially for housings, covers, brackets, and test fixtures.

Can ABS hold tight tolerances?

Yes—ABS can be machined accurately, but it is more sensitive to heat and has a higher thermal expansion than metals. The most reliable approach is CTQ-first tolerancing: hold tight datums/bores where function requires it, and use standard tolerances elsewhere (e.g., ISO 2768 medium) to control cost.

Why does ABS sometimes show melted edges or a gummy surface?

ABS can soften if tool interface temperatures climb near its glass transition region. Sharp tooling, correct chip load, air blast / chip evacuation, and avoiding rubbing passes help prevent heat build-up and surface smearing.

Do you support heat-set inserts in machined ABS parts?

Yes. ABS is commonly designed with brass heat-set threaded inserts. The key is proper boss geometry, sufficient wall support around the insert, and a controlled insertion process to avoid cracking or distortion.

ABS CNC machining vs injection molding—when should I switch?

CNC machining is often the fastest path for prototypes and low-volume runs because there is no mold lead time. When volumes rise and the design is stable, injection molding usually becomes the lower unit-cost option—especially for parts with consistent, thin wall sections.

ABS plastic stock and CNC machined ABS parts on a clean workbench

Prototype → low-volume Impact-resistant + paintable Heat-aware machining

ABS CNC Machining Services

Batnon provides ABS CNC machining for durable prototypes and production-ready plastic parts—especially housings, covers, brackets, and fixtures. ABS (acrylonitrile butadiene styrene) is a workhorse resin because it’s cost-effective, tough, and easy to finish (bead blast, vapor smoothing, paint). The machining reality is heat: stable chip formation and sharp tools matter to prevent smearing, melted edges, and dimensional drift on thin walls.

When to Choose ABS Tolerances & Finish DFM Guide

Need higher stiffness and optical clarity? Compare with Polycarbonate / PC CNC machining. Need lower friction and better dimensional stability? See Delrin / POM CNC machining.

Plastic Material Pages

Same layout across materials—different machining physics. Use these pages to compare DFM, tolerances, and cost drivers.

Engineering Plastics

You are here: ABS. Explore the other engineering plastics pages:

Delrin / POM · Nylon / PA · Polycarbonate / PC

High Performance Plastics

When temperature/chemicals/purity drive the spec:

PEEK · Ultem / PEI · PTFE · Vespel / PI

Fast selection hint

ABS is often chosen when you need impact resistance, cost-effective prototypes, and an easy-to-finish surface (paint, texture, cosmetic work). For thin cosmetic walls, design to avoid heat build-up during machining.

Best at: enclosures, covers, functional appearance prototypes
Watch: heat/smear, thin-wall distortion, high CTE
Cost lever: tolerance strategy + cosmetic finish level

What ABS Is — and When to Choose It for CNC Machining

ABS is a mainstream thermoplastic combining toughness (butadiene), rigidity (styrene), and chemical resistance (acrylonitrile). In machining ABS plastic, the value proposition is speed: it’s a go-to for ABS prototype machining and low-volume runs when you want molded-like geometry feel without mold lead time. Published references commonly cite ABS glass transition around ~105°C, so heat-aware toolpaths and sharp tools are key to avoid rubbing and surface smearing.

Use case 1: Enclosures & housings

ABS is widely used for electronics enclosures, instrument covers, and protective housings. It’s impact-resistant and takes paint well—ideal for appearance prototypes and pilot builds.

Use case 2: Automotive interior prototypes

For bezels, trim brackets, and functional fit-check parts, CNC machined ABS offers fast iteration while keeping a material feel similar to many molded interior plastics.

Use case 3: Jigs, fixtures & test tools

ABS fixtures and drill guides are common when you need a durable, non-marring tool that can be revised quickly as the assembly evolves.

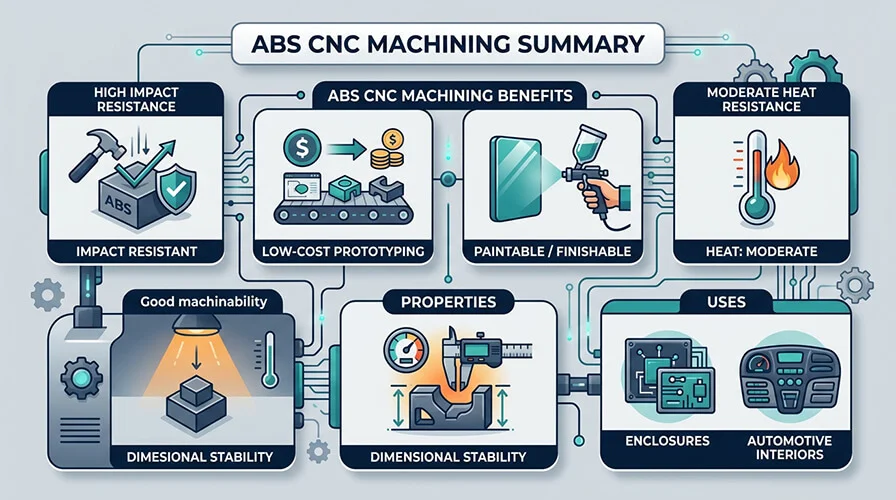

ABS CNC machining infographic showing impact resistance, prototype-friendly cost, paintability, and moderate heat resistance

ABS is a strong default for functional prototypes—just keep machining heat under control and specify CTQs with intent.

ABS Properties That Affect CNC Machining Results

ABS is forgiving—until heat and thin geometry amplify its thermal expansion. This table focuses on the property drivers that affect tolerance, finish, and stability in real assemblies.

Property driver	What it means for your part	Why it matters in machining
Impact resistance	Good toughness for housings and protective parts	Handles drops and vibration; design still needs fillets and ribs to avoid stress risers.
Paintability & finishability	Cosmetic finishes are common (paint, texture, smoothing)	Finishing level is a cost driver—define what surfaces are cosmetic vs functional.
Thermal behavior (Tg ~105°C)	Softens as temperature rises; not a high-temp resin	Avoid rubbing passes; sharp tools + chip evacuation prevent smear and edge melt.
CTE (thermal expansion)	Dimensions move more with temperature than metals	Thin walls and long parts can drift—tolerance only what matters (CTQs) and fixture correctly.
Moisture absorption	Generally lower than nylon; more stable in humidity	Good choice when nylon’s moisture-driven size change would be a risk, but ABS is less wear-focused.

DFM Guide for ABS CNC Machining (Heat, Walls, Inserts)

ABS machines cleanly with sharp tooling, but it punishes rubbing. The best DFM for precision ABS plastic machining is to design geometry that stays stiff in workholding and avoids thin sections that heat up and chatter.

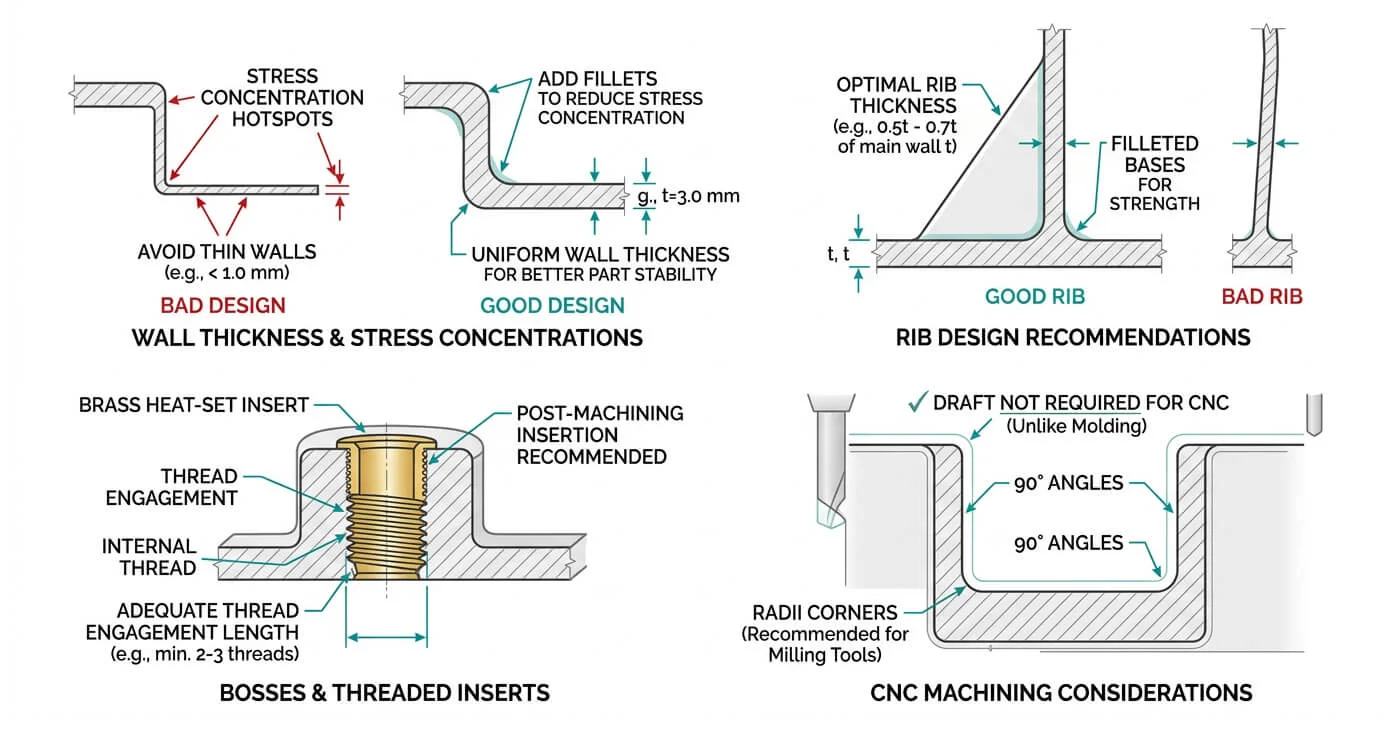

ABS CNC machining DFM diagram showing fillets, ribbing, boss design and heat-set insert features

Practical ABS DFM: keep walls robust where you need accuracy, add fillets, and use insert-friendly bosses rather than cutting threads directly into thin ABS.

Thin walls & large flats

ABS can flex under cutting forces. If you need thin cosmetic walls, isolate CTQs (datums/bores) in reinforced zones and accept looser walls where appearance allows.

Heat-set inserts (recommended)

For assembly threads, brass heat-set inserts are common in CNC machined ABS parts. Plan boss OD, wall support, and insertion access—this prevents cracking and improves repeatability.

Chip evacuation & tool sharpness

Smearing typically means rubbing. Use sharp cutters, proper chip load, and air blast/vac to clear chips—especially in pockets and deep cavities.

When to consider stress relief (annealing)

If you remove a lot of material from extruded ABS stock (deep pockets, thin walls), stress can release as warp. Some ABS suppliers publish stress-relief guidance such as heating to ~220°F (≈104°C) with a controlled heat-up and slow cool-down schedule. If your part is warp-sensitive, we can discuss a stress-relief step before final CTQ finishing.

Best practice: rough → stabilize → finish critical features
CTQ protection: machine datums/bores last when possible
Communicate: tell us environment + inspection state (assembled, painted, etc.)

Tolerances & Surface Finish for CNC Machined ABS Parts

For custom ABS CNC machining service work, the winning strategy is not “tight everywhere.” It’s selecting CTQs, then using standard tolerances elsewhere to keep cost and lead time predictable. A common reference point in CNC machining is an as‑machined finish around Ra 3.2 μm (125 μin), with smoother finishes available when required.

Requirement	What’s realistic	How to design/spec it
General dimensions	Standard tolerances (often ISO 2768 medium for non-CTQ)	Use general tolerances on non-critical features; reserve tight callouts for fits and datums.
CTQ bores / mating datums	Tighter tolerances are achievable on supported geometry	Add bosses, fillets, and tool access. Avoid extremely thin surrounding walls that can deflect and heat.
Cosmetic surfaces	Matte to glossy depends on process & finishing	Mark cosmetic faces and specify finish method: as-machined, bead blast, vapor smoothing, paint.
Threads	Inserts recommended for durability	Use brass heat-set inserts for repeatable torque and long thread life in ABS.

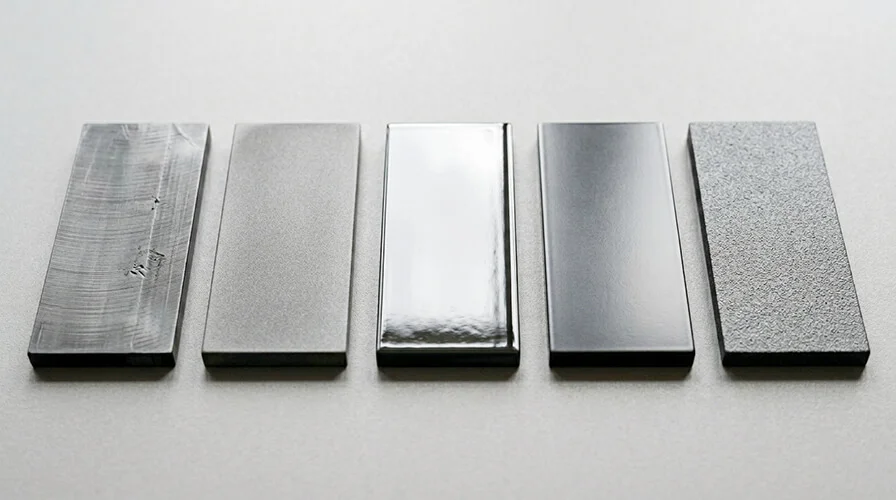

ABS surface finish samples showing as-machined matte, bead blasted matte, vapor smoothed glossy and painted surfaces

Finish options for ABS: define which faces are cosmetic, and we’ll optimize toolpaths + post-processing for that intent.

Post‑Processing Options for ABS (Cosmetic & Assembly Ready)

ABS is popular because it supports a wide range of secondary operations. If you need a “molded look” for a demo or pilot build, we’ll align machining + finishing to your cosmetic expectation.

Bead blasting

Creates a uniform matte appearance and reduces visible tool marks. Good for housings and covers when you want an even cosmetic texture.

Vapor smoothing

Used to reduce layer-like machining texture and approach a glossier surface. Best when appearance matters more than micro-texture on functional faces.

Painting / textured coating

ABS takes paint well. Define the coating type (matte/satin/gloss) and masking requirements for inserts, gaskets, and precision interfaces.

Common ABS CNC Machining Applications

ABS shows up where you need “tough + affordable + finishable.” These examples reflect typical RFQs we see for CNC machined ABS plastic parts.

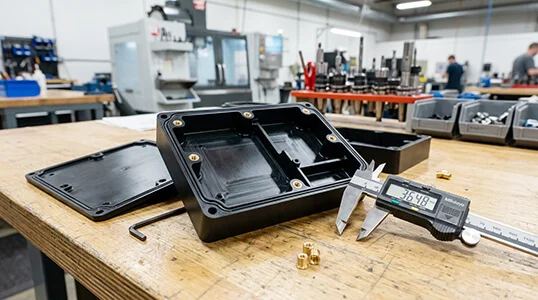

CNC machined ABS electronics enclosures with heat-set inserts and gasket groove

Enclosures & covers

Split housings, lids, and functional appearance prototypes with insert-ready bosses and gasket features.

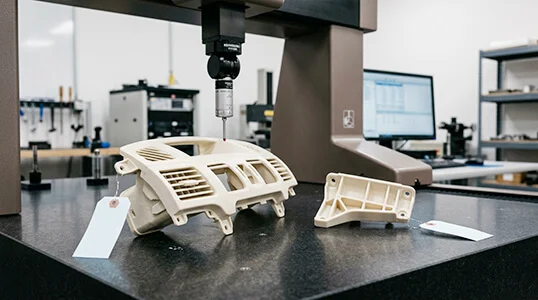

CNC machined ABS prototypes for automotive interior trim inspected in a metrology lab

Automotive interior prototypes

Trim brackets, bezels, vents—fast fit and finish iteration before committing to tooling.

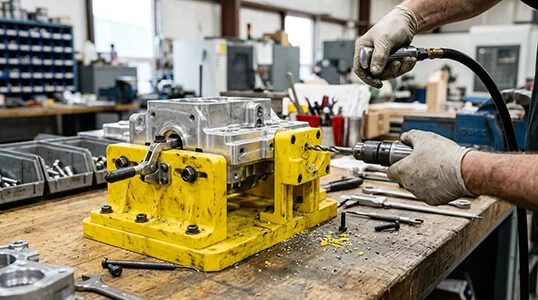

Jigs & fixtures

Durable, non-marring fixtures and guides that can be revised quickly as your assembly evolves.

ABS Grades We Commonly Machine

ABS family performance varies by grade and filler. Tell us your environment and cosmetic goals, and we’ll suggest a fit‑for‑purpose stock.

Grade type	Why engineers pick it	Typical use
General purpose ABS	Balanced toughness + machinability + cost	Enclosures, brackets, prototypes
Flame-retardant ABS (FR)	Compliance-driven applications	Electronics housings (when specified)
Filled / reinforced ABS	Higher stiffness and lower movement in some cases	Fixture elements, structural covers (grade-dependent)

Note: Availability varies by region and supplier. If you require UL files, certifications, or a specific brand/grade, include it in your RFQ.

ABS CNC Machining FAQ

Quick answers for design reviews, sourcing, and DFM discussions.

What tolerance should I call out for ABS plastic machining?

Start by identifying CTQs (mating bores, datums, sealing interfaces). Apply tight tolerances only where they protect function. For the rest, use a general tolerance standard (often ISO 2768 medium). This keeps machining time and scrap risk under control.

Do you recommend threads directly cut into ABS?

For light-duty or occasional assembly, tapped threads can work. For repeated assembly, torque requirements, or thin walls, brass heat-set threaded inserts are usually the better engineering choice.

Can ABS be bead blasted, vapor smoothed, or painted?

Yes. ABS is one of the most finish-friendly plastics. Define the cosmetic faces and the finish method so we can optimize machining (tool marks direction, allowances, masking for inserts/gaskets).

ABS vs Polycarbonate—what’s the difference for machining?

ABS is typically chosen for cost-effective, impact-resistant prototypes with great finish options. Polycarbonate (PC) is often chosen when you need higher toughness at temperature, transparency, or higher stiffness—but it can be more demanding to machine and finish depending on the geometry.

ABS vs Nylon—when should I choose ABS?

Choose ABS when you need a stable, finishable housing material and you want to avoid nylon’s moisture-driven size change. Choose nylon when wear and abrasion dominate and you can plan around conditioning state.

ABS CNC Machining for Prototypes and Production

Batnon supports CNC machined ABS plastic parts for engineering teams worldwide—from rapid prototypes to repeat production. Share your cosmetic intent, CTQs, insert requirements, and quantity, and we’ll build a heat-aware machining and inspection plan so parts assemble cleanly and remain cost-competitive.

For higher temperature or aggressive chemistry, use: High Performance Plastics CNC Machining.

Explore Other Plastic Materials

Compare machining behavior, tolerances, and DFM notes across plastics:

Engineering plastics: Delrin / POM · Nylon / PA · ABS · Polycarbonate / PC
High performance plastics: PEEK · Ultem / PEI · PTFE · Vespel / PI

If you’re unsure where to start, tell us the failure mode (impact, cosmetic, fit drift, temperature, chemicals, purity) and we’ll route you to the right material page.
