High Performance Plastics CNC Machining Services

When temperature, chemicals, or purity drives the spec, “normal plastics” stop behaving normally. Batnon provides high temperature plastic machining and precision CNC machining for premium polymers—including PEEK CNC machining, Ultem (PEI) machining, PTFE machining, and Vespel / polyimide machining. We engineer the process for heat control, dimensional stability, and inspection evidence—so you get best-in-class part performance while staying cost-competitive.

Choose Your Resin PEEK vs PEI vs PTFE vs PI DFM Guide

Need deep PEEK intent? Go to PEEK CNC Machining Services (dedicated page).

Go Direct to Resin Pages

This hub owns category intent (high performance plastics CNC machining). For resin-specific deep intent, use the pages below.

PEEK

Balanced strength + chemical resistance; common “entry” high-performance resin.

Go to PEEK page

Ultem / PEI

High heat, dimensionally stable, inherently flame-resistant—great for electrical/structural.

Go to Ultem/PEI page

PTFE

The chemical + low-friction specialist—tolerance strategy is different.

Go to PTFE page

Vespel / PI

Extreme temperature + wear, often chosen for dry/vacuum and low outgassing needs.

Go to Vespel/PI page

Need standard engineering plastics instead? See Engineering Plastics CNC Machining.

When High-Performance Plastics Are Worth It

High-performance plastics earn their cost when the part sees conditions that amplify risk: sustained heat, steam, aggressive chemistry, vacuum outgassing limits, or contamination sensitivity. The machining itself also changes—these materials can carry internal stress, expand significantly with temperature, and (for filled grades) behave more like composites. Professional high temperature plastic machining focuses on heat control, stability planning, and a tolerance strategy that targets what actually matters for assembly and reliability.

Temperature + Creep Drives the Choice

When parts must keep shape under load at elevated temperature, resins like PEEK, Ultem/PEI, and polyimides are evaluated. Temperature capability is not just “max temp”—it’s how the part holds tolerance and strength over time.

Chemistry, Purity, and Outgassing

For chemical wetted parts, PTFE and PEEK are common starting points. For vacuum / dry wear or ultra-low outgassing requirements, polyimide families are often specified. Purity constraints also influence cleaning and packaging.

Wear, Friction, and Surface Strategy

Some applications fail by wear rather than breakage. PTFE reduces friction; PI grades with fillers can improve wear and friction in dry environments. The best results come from matching resin + surface finish to the tribology reality.

Positioning: “When temperature/chemicals/purity drives the spec.”

Typical triggers we see before teams search for PEEK machining or other premium polymers:

High temperature: parts near heaters, hot fluids, autoclave/steam exposure, or electronics heat soak
Aggressive chemistry: acids/bases/solvents, chemical delivery, seals/valve seats
Purity: semiconductor/analytical tooling, low extractables, controlled cleaning
Dry wear / vacuum: low outgassing + stable wear performance without lubrication

Technical basis (non-exhaustive): published polymer property guidance from material producers for PEEK (e.g., Victrex), PEI/Ultem (e.g., SABIC), PTFE data sheets, and polyimide handbooks (e.g., DuPont Vespel® design guidance).

High Performance Plastics We CNC Machine (Hub Summary)

This hub summarizes the category and helps you choose a direction fast. For deeper resin guidance (grades, design rules, and cost levers), use the dedicated resin pages linked in the hero card.

Best For	Strengths	Watch Outs	Typical Parts
Heat + chemistry with mechanical load	Excellent high-temp performance for a thermoplastic, strong/stiff, very good chemical resistance; filled grades boost stiffness and wear	Heat management + stress control matter; filled grades can be abrasive (tooling strategy); choose tolerances based on operating temperature	Manifolds, insulators, bushings, structural brackets, semiconductor fixtures

Go deeper: PEEK CNC Machining Services.

Best For	Strengths	Watch Outs	Typical Parts
High heat structural + electrical insulation	High glass transition, strong and dimensionally stable; inherently flame-resistant in many grades; good for electrical and aerospace interiors	More notch-sensitive than some resins—use radii; cosmetics depend on tool sharpness and chip evacuation	Connectors, housings, brackets, tooling plates, aerospace interior components

Best For	Strengths	Watch Outs	Typical Parts
Chemical wetted + low friction interfaces	Outstanding chemical resistance; very low friction; broad temperature range; great for seals and valve seats	Soft and deformable—requires support, conservative clamping, and pragmatic tolerances; bonding can be challenging	Seals, seats, liners, valve components, chemical handling parts

Best For	Strengths	Watch Outs	Typical Parts
Extreme temperature + dry wear / vacuum	High-temperature stability, excellent wear and friction behavior in demanding environments; commonly specified where low outgassing matters	Material cost is higher; define CTQs carefully; consider grade/filler selection by wear and environment	Wear rings, bushings, bearing cages, thrust washers, vacuum components

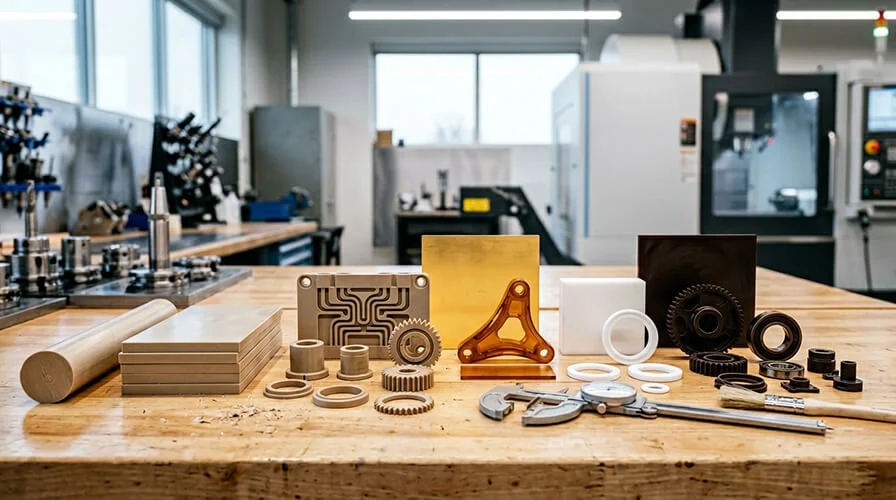

High performance plastics comparison table for PEEK, Ultem PEI, PTFE and polyimide Vespel

Above: common high-performance machining stock and typical finished parts. In real projects, selection is driven by the dominant risk: heat + load (often PEEK/PEI/PI) versus chemistry + friction (often PTFE/PEEK), plus purity and outgassing constraints.

Comparison Table: PEEK vs Ultem (PEI) vs PTFE vs Vespel / PI

Use this as a fast selection map. Final resin choice should be validated against your actual temperature, chemicals, load, and cleanliness requirements.

Driver	PEEK	Ultem / PEI	PTFE	Vespel / PI
Typical continuous service temperature*	~250–260°C typical (grade dependent)	High Tg; typical long-term ratings often up to ~170–180°C (grade/rating dependent)	Broad range; often cited up to ~260°C for many applications	Often specified for ~300°C continuous; short excursions higher (grade dependent)
Chemical resistance	Very strong overall; good for many aggressive environments	Good for many fluids; validate with chemical chart	Excellent / near-universal for many chemicals	Good, but selection is often driven more by wear/outgassing/temp
Wear & friction	Good; improved with filled grades	Good structural resin; tribology depends on grade	Very low friction; softer material needs design support	Excellent dry wear potential; many grades tuned with fillers
Purity / outgassing suitability	Used widely in semiconductor tooling (cleaning/handling matters)	Used in electronics and high-heat assemblies; validate extractables if regulated	Clean chemistry; surface handling matters for particle control	Often selected for low outgassing / vacuum service needs
Strength & stiffness	High; filled grades increase stiffness	High for an amorphous polymer; stable dimensions	Lower; design for support and larger contact areas	High-temperature capability and stiffness; grade dependent
Cost (relative)	$$$	$$	$$–$$$ (depends on form and grade)	$$$$
Machining notes	Heat and stress planning; tooling strategy for filled grades	Sharp tooling + chip evacuation for clean cosmetics	Support during machining; avoid distortion; practical tolerances	Define CTQs; choose grade for wear/outgassing/temp; premium material control

*Numbers above are typical ranges cited in published material guidance and ratings systems; actual limits depend on resin grade, load, time, chemicals, and safety factors. We’ll confirm based on your application.

Industries That Commonly Specify High-Performance Plastics

These polymers show up when metal is too conductive/contaminating, when chemistry attacks conventional plastics, or when temperature makes standard resins creep out of tolerance.

High performance plastics stock and precision CNC machined parts including PEEK, Ultem PEI, PTFE and polyimide

Material-Driven Engineering

Pick resin by the dominant failure mode: heat + load, chemistry + friction, or purity/outgassing. The correct choice often reduces lifetime cost even when the raw material is premium.

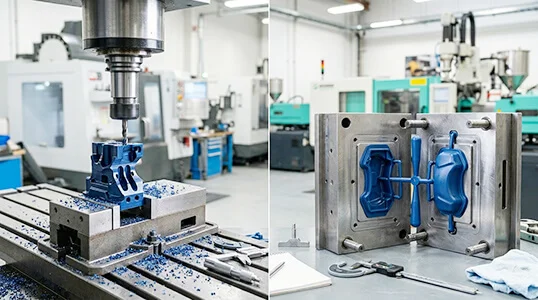

Comparison of CNC machining and injection molding for high temperature plastic parts

Prototype → Production

High-performance plastics are frequently CNC machined for prototypes and bridge builds, then evaluated for alternative processes when volume stabilizes. Good DFM keeps that path open.

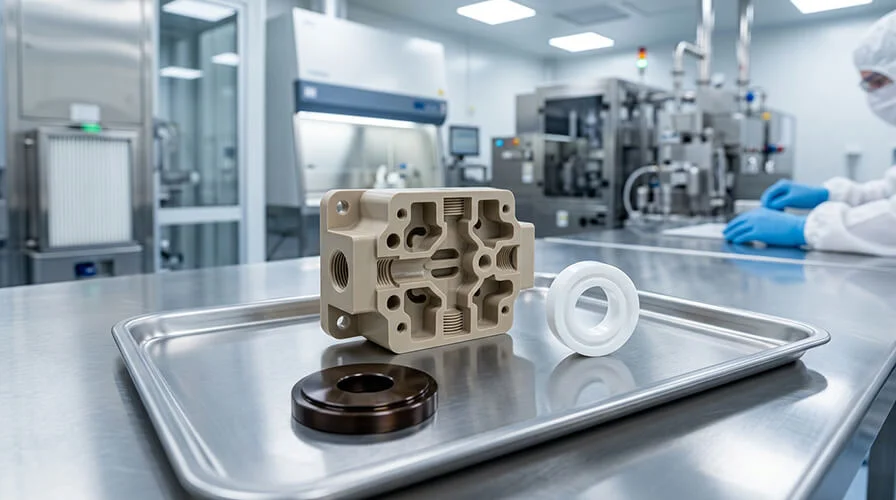

High purity CNC machined plastic components for semiconductor and chemical handling applications

Purity-Sensitive Applications

Semiconductor tooling, analytical instruments, and chemical delivery systems often require tight control of particles, extractables, and surface handling—beyond dimensional tolerances alone.

Common Use Cases (Examples)

Semiconductor: wafer handling fixtures, high-purity manifolds, valve components, insulators
Aerospace & defense: high-heat brackets, electrical insulators, flame-critical interior components (by spec)
Medical & life science: sterilization-resistant tooling, non-metallic fixtures, regulated documentation needs
Chemical processing: seals, seats, liners, corrosion-resistant components
Energy: pump components, insulating parts, high-temperature wear elements

Capabilities for High-Performance Plastics CNC Machining

We support CNC machining across premium resins for prototypes and repeat production. The core is process control: heat management, stable datums, and inspection aligned to CTQs—so performance improves without spending like every surface is cosmetic.

3/4/5-Axis Milling

Pocketed manifolds, plates, fixtures, and structural parts with controlled tool engagement to reduce heat and movement.

Turning + Boring

Rings, bushings, seats, and tight bores with support strategies to protect roundness and surface integrity—especially in PTFE.

Secondary Ops + Assemblies

Threaded inserts (where appropriate), controlled edge break, bead-blast/matte coordination, and build-to-print assemblies with documented CTQs.

DFM Guide: Heat, Stability, and Cost in High-Temperature Plastic Machining

High-performance plastics can be remarkably precise—if you treat heat and stress as first-class engineering variables. The goal is not “tight tolerances everywhere,” but stable CTQ features that stay in spec at the operating condition.

Design / Process Item	Recommendation	Why It Matters
CTQ-driven tolerancing	Call out only functional CTQs (bores, sealing faces, datums)	Premium polymers are costly; CTQ focus preserves performance without inflating machining and inspection time.
Thermal expansion planning	Define the measurement condition and operating temperature	A part measured at room temperature may shift at elevated temperature; tolerance strategy should reflect reality.
Balanced material removal	Symmetric roughing; avoid deep pockets on one side only	Reduces stress release and improves flatness/parallelism on plates and manifolds.
Radii and edge strategy	Use internal radii; specify edge breaks intentionally	Sharp corners concentrate stress and can chip; controlled edges improve assembly and reduce particle risk.
Filled grades tooling	Use appropriate tooling strategy for abrasive fillers	Carbon/glass-filled polymers can wear tools faster; correct tool choice protects finish, accuracy, and cost.
Cleanliness requirements	Specify cleaning/packaging early (if needed)	Purity isn’t an afterthought—surface handling and packaging can be as critical as machining tolerance.

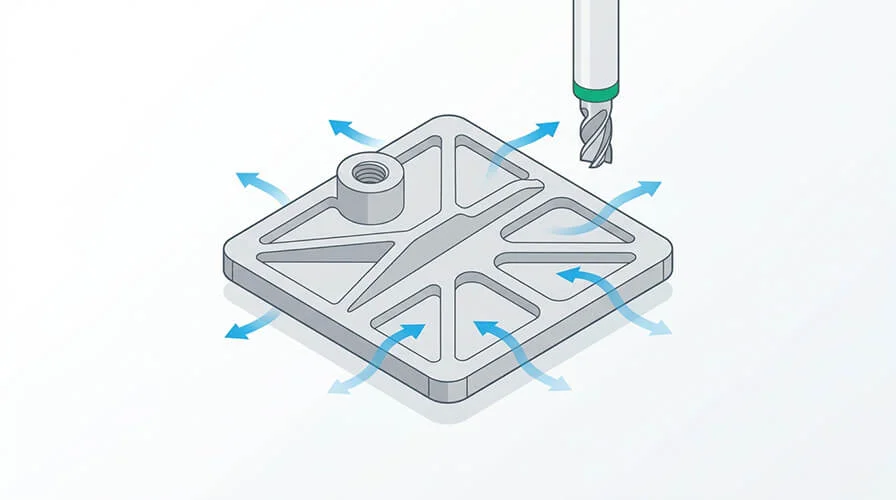

DFM illustration for machining high-performance plastics showing radii, ribs, inserts and balanced pocketing

DFM principle: assume plastics want to move. Engineer that movement out through radii, balanced machining, stable datums, and (when needed) controlled steps that reduce heat and stress release.

Cost Control That Doesn’t Reduce Performance

Premium resin cost is real—but you can stay competitive when you align engineering intent to manufacturing reality:

CTQs only: tight tolerance where it changes function; relaxed where it doesn’t
Geometry that machines cleanly: radii, consistent wall sections, fewer fragile features
Setup reduction: design datums that allow simple workholding and fewer flips
Finish targeting: spend on cosmetic/functional faces, not on hidden surfaces

Surface Finishes, Cleaning, and Packaging (As Required)

For high-performance polymers, finish isn’t just cosmetic—it can influence friction, particle shedding, and sealing behavior. For regulated or purity-sensitive builds, cleaning and packaging can be scoped as part of the deliverable.

Finish / Step	What It Does	Best For	Notes
As-machined (defined Ra)	Functional toolpath texture	Most structural parts	Cost-effective; identify cosmetic faces separately.
Matte / bead blast (where suitable)	Uniform low-glare look	Housings, visible covers	Confirm fit-critical surfaces; not every resin/grade is a blast candidate.
Controlled edge break	Safer handling + better assembly	All parts	Specify intent to avoid overworking CTQs.
Cleaning (by request)	Removes chips/film	Purity-sensitive builds	Define acceptable cleaning method and residue constraints.
Packaging (by request)	Protects surfaces + cleanliness	Semiconductor / medical tooling	Define bagging, labeling, and handling requirements.

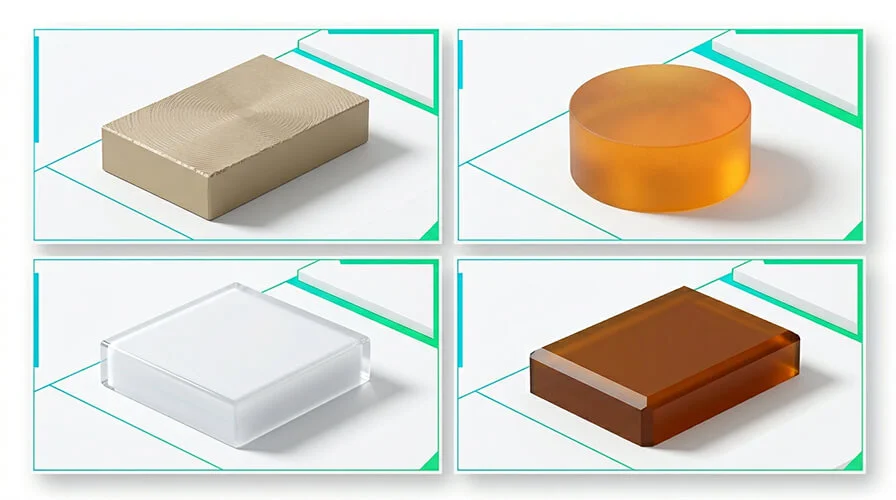

Illustration of finish options for machined high performance plastics: as-machined, matte, polished, deburred

Finish planning: split surfaces into (1) cosmetic, (2) fit/seal-critical, (3) friction/tribology, and (4) purity-sensitive. That prevents overspending and improves functional reliability.

Quality Documents for High-Performance Plastics Parts

Quality evidence should reduce risk, not inflate the quote. We align documentation to your CTQs—dimensional fit, sealing, flatness, and material traceability where required.

Material Traceability

Material certifications and lot traceability when required—useful for regulated supply chains and customer procurement controls.

FAI + Dimensional Reports

First article inspection packages and measurement reports tied to datums, bores, sealing faces, and hole patterns.

Clean Build Options

If your spec requires it, we can scope cleaning and packaging steps and document them as part of the deliverable (requirements must be defined upfront).

Case Study: High-Performance Plastics for Heat + Chemistry + Purity

An equipment team needed premium polymer parts for a mixed environment: a chemical-wetted sealing interface, a high-temperature structural component, and a dry-wear element that had to remain stable with minimal contamination risk. The solution was not “one resin for everything,” but resin-by-function selection plus a machining plan that controlled heat and stress release.

Program Goal	Primary Constraint	Batnon Approach	Outcome
Best performance at competitive cost	CTQ sealing + alignment, stable geometry at elevated temperature, chemistry and cleanliness constraints	Resin-by-failure-mode selection (PEEK / PTFE / PI), heat-aware toolpaths, CTQ-only tolerancing, risk-based inspection	Stable assemblies, reduced rework, predictable delivery and documentation without over-inspection

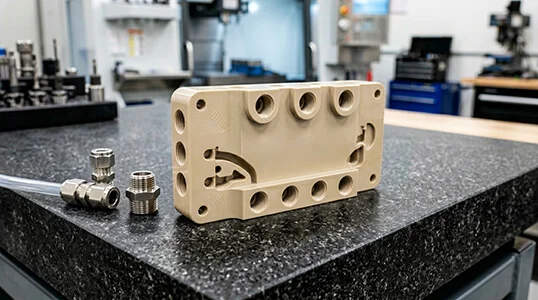

Precision CNC machined PEEK manifold component for high temperature or chemical service

PEEK Manifold / Structural Part

Chosen for its balance of mechanical performance and chemical resistance. CTQs were ports, sealing faces, and datum-driven alignment.

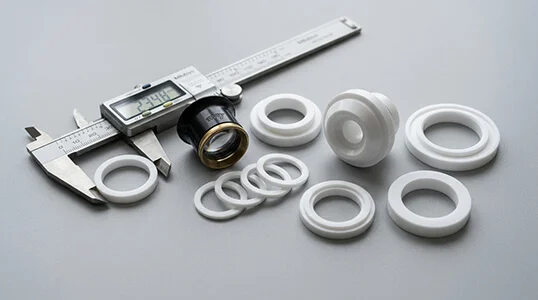

PTFE machined seals and valve seat components for chemical handling

PTFE Seal / Seat

Selected for chemical resistance and low friction. Workholding and tolerance strategy were tuned to prevent deformation.

Polyimide Vespel-like wear components for dry wear and elevated temperature

Polyimide Wear Element

Used where dry wear and temperature stability mattered most. Grade selection and edge strategy reduced friction risk in service.

Transferable Lessons

High-performance plastics projects succeed when you separate three decisions: resin selection, tolerance strategy, and surface handling.

Resin-by-function: choose by dominant failure mode, not by what’s popular
CTQs only: tighten what controls assembly and reliability; relax the rest
Heat & stress control: balanced removal, stable workholding, sharp tools
Purity is a spec: define cleaning/packaging requirements early

FAQ: High Performance Plastics CNC Machining

Quick answers about PEEK machining, Ultem machining, PTFE machining, and Vespel / polyimide machining—and how to keep premium polymers precise and cost-competitive.

Is this page about PEEK CNC machining or all high-performance plastics?

This is the high-performance plastics hub (category intent). PEEK is the most common “entry” resin for high-demand applications, so we highlight it and link early to the dedicated PEEK CNC machining page for deeper design rules, grades, and machining guidance.

How do you keep high temperature plastic machining accurate without warpage?

We manage the two things that move plastics: heat and stress. In practice that means sharp tooling, correct chip load (avoid rubbing), stable workholding, balanced material removal, and (when needed) staged machining that reduces stress release. We also target tight tolerances only on CTQ features that truly control assembly and function.

Why is PTFE machining different from PEEK or Ultem machining?

PTFE is softer and more deformable, so it’s more sensitive to clamping and cutting forces. We typically use support strategies, conservative clamping, and a pragmatic tolerance plan—while still leveraging PTFE’s standout chemical resistance and low friction where those properties matter.

When should I choose Vespel / polyimide over PEEK?

Polyimide families are commonly chosen for extreme temperature performance, excellent wear behavior in dry/vacuum environments, and low outgassing needs. If your main driver is chemical resistance with a robust thermoplastic processing window, PEEK is often the first option to evaluate.

What information do you need for a fast, accurate quote?

Send a STEP file plus: resin preference (or your constraints), quantity, CTQs (bores, sealing faces, flatness, datum scheme), any purity/cleaning requirements, cosmetic faces, and any post-processing. If you’re unsure on resin, share operating temperature, chemicals, and whether the part sees vacuum or sterilization cycles.

High Performance Plastics CNC Machining (Global Supply, Engineering-First Support)

Batnon supports high performance plastics CNC machining for engineering teams across North America, Europe, and Asia—shipping prototypes and production parts worldwide. If you’re searching for PEEK CNC machining, high temperature plastic machining, Ultem machining, PTFE machining, or Vespel / polyimide machining, our workflow is designed for fast alignment: resin selection, DFM for heat and stability, finish + cleanliness planning, and inspection evidence tied to CTQs.

Resins: PEEK, Ultem/PEI, PTFE, Vespel/PI (links above the fold)
Typical applications: semiconductor tooling, chemical handling components, high-heat insulators, wear parts
Process planning: heat control, balanced machining, grade-aware tooling, CTQ-only tolerancing
Need standard plastics? Engineering plastics hub

Tip for fast quoting: include environment (temp/chemicals/purity), resin preference, quantity, CTQs, cosmetic faces, and any cleaning/packaging requirements.
