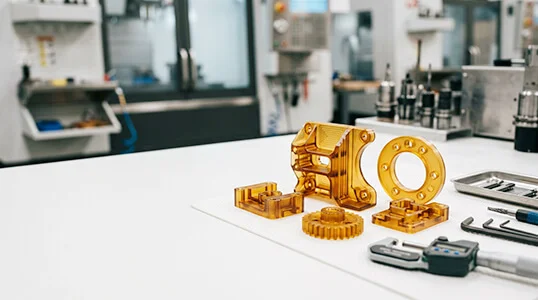

ULTEM (PEI) amber translucent stock and CNC machined high-heat plastic parts on clean workbench

Prototype → production High heat + flame/smoke Anneal for CTQs

Ultem / PEI CNC Machining Services

Batnon provides ultem cnc machining and pei cnc machining services for high-temperature, electrically insulating components where flame/smoke and dimensional stability matter. Ultem (polyetherimide) is an amorphous high-performance plastic with a high glass transition temperature (~217°C) and inherent flame resistance. The machining “gotchas” are residual stress and heat: for ultem pei tight tolerance machining, we plan stock selection, symmetric roughing, and ultem cnc machining annealing stress relief so your parts stay flat, assemble cleanly, and remain cost-competitive from ultem pei prototype to production machining.

When to Choose PC Tolerances & Finish DFM Guide

Need lower cost appearance prototypes? Compare with ABS CNC machining. Need low friction and stable fits? See Delrin / POM CNC machining.

Plastic Material Pages

Same structure across materials—different machining physics. Use these pages to compare DFM, tolerances, and cost drivers.

Engineering Plastics

You are here: Ultem / PEI. Compare plastics for DFM, tolerances, heat/chemical performance, and cost drivers.

Delrin / POM · Nylon / PA · ABS

High Performance Plastics

When temperature/chemicals/purity drive the spec:

PEEK · Ultem / PEI · PTFE · Vespel / PI

Fast selection hint

Ultem (PEI) is often chosen when you need high heat capability plus excellent flame/smoke performance and electrical insulation—common in aerospace interiors, electronics, and sterilizable tooling. The “gotchas” are stress and flatness: thin walls and asymmetric material removal can warp parts. For best results, define CTQs and consider annealing/stress relief when removing significant material.

Best at: high-heat insulators, FST-focused parts, sterilizable fixtures
Watch: residual stress, warpage, glass-filled abrasiveness (2300)
Cost lever: CTQ-first tolerances + stress-relief planning

What Ultem (PEI) Is — and When to Choose It

Ultem (polyetherimide / PEI) is an amorphous high-performance thermoplastic known for high heat capability, inherent flame resistance, and strong electrical insulation. It’s common in aerospace interiors and electronics where FST (flame/smoke/toxicity) concerns matter. Successful high temperature plastic cnc machining in Ultem is about controlling heat and residual stress: sharp tools, stable support, symmetric stock removal, and—when needed—annealing/stress-relief planning.

Use case 1: Aerospace interior components

Ultem machining for aerospace parts is common for brackets, clips, and interior components where flame/smoke performance and weight reduction are important.

Use case 2: Electrical insulation + connectors

Ultem is used for ultem electrical insulation components machining such as connector insulators and high-temp housings—especially when dimensional stability matters.

Use case 3: Sterilizable tooling & fixtures

For medical/lab fixtures that see heat/steam cycles, Ultem offers a strong balance of heat capability and stability—define CTQs and edge requirements for repeatable assembly.

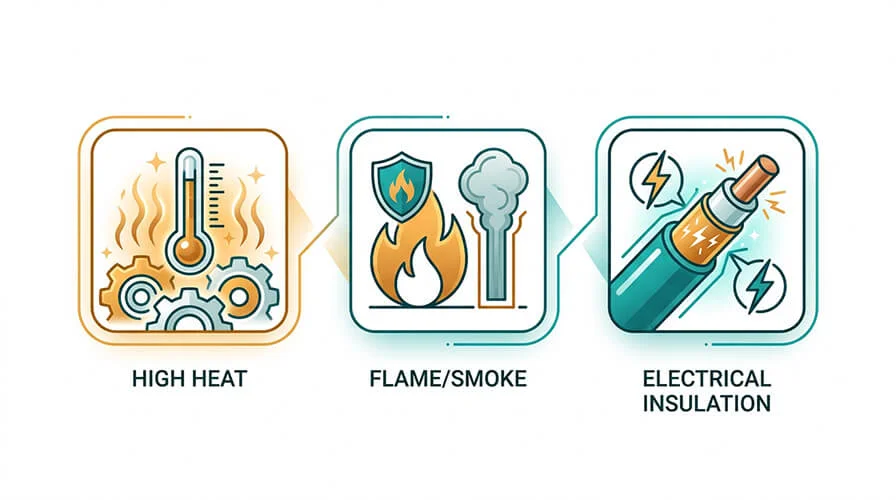

Ultem PEI selection infographic: high heat, flame/smoke, electrical insulation

Selection shortcut: choose Ultem when heat + flame/smoke performance and insulation drive the spec. If you need the highest wear/chemical resistance under load, compare with PEEK; if you need extreme chemical inertness and low friction, compare with PTFE.

Key Polycarbonate Properties That Affect CNC Machining

PC’s strength is toughness and clarity—but heat and stress behavior determine whether it stays clear and crack-free. (Typical datasheets list PC glass transition around ~150°C, water absorption around ~0.1%, and CTE around ~66×10⁻⁶/K—useful context when designing for temperature swings.)

Property driver	What it means for your part	Why it matters in machining
Impact resistance	Excellent toughness for guards, covers, and protective components	Supports thin clear panels better than brittle plastics, but thin walls can vibrate—fixture and toolpaths matter.
Transparency (amorphous)	Can be optically clear; edges and surfaces show tool marks easily	Define optical faces early; finishing is a major cost driver (deburr, polish, edge finishing).
Thermal behavior (Tg ~150°C)	Better heat performance than many commodity plastics	Heat still matters at the cutter—avoid rubbing; keep chips evacuating to reduce haze and smear.
CTE (thermal expansion)	Dimensions move with temperature more than metals	Design for clearance where needed, and tolerance CTQs intentionally (don’t over-tolerance cosmetic panels).
Chemical sensitivity	Certain solvents/cleaners can trigger crazing under stress	Material selection includes the cleaning environment; avoid sharp corners and consider stress relief for risk parts.

DFM Guide: Stress, Heat Control, and Cost in Ultem (PEI)

Ultem machines well, but tight tolerances depend on stress control. The highest ROI DFM moves are symmetric stock removal, generous radii, and ribbing for stiffness. For large plates or thin features, plan annealing/stress relief and define CTQs so inspection targets what gates performance.

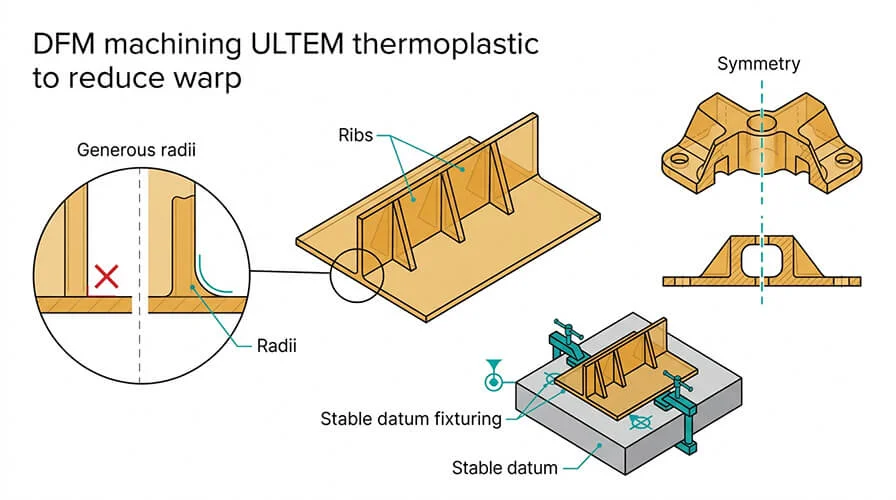

Ultem DFM diagram: ribs, symmetry, radii, stable datum to reduce warp

DFM insight: Ultem parts drift when residual stress is released. Rough symmetrically, keep section thickness consistent, and use ribs. If you remove significant material or have thin walls, plan stress relief so dimensions stay stable.

Design radii to prevent stress

Inside corners are common crack starters. Add fillets and avoid knife-edge features—this reduces the chance of polycarbonate machining stress cracking prevention becoming a post-assembly issue.

Protective film + clean workholding

Keep protective film on clear sheet whenever possible. Use soft jaws and clean fixtures to avoid imprinting marks on cosmetic surfaces.

Rough → stabilize → finish CTQs

For warp-sensitive parts, roughing can release stress. A staged process (rough first, then finish) protects CTQs and reduces dimensional drift.

Practical “no regrets” specs to include in your RFQ

To make custom ultem cnc machining service quoting accurate and fast, specify:

Color/grade: clear PC vs black; flame rating if required
Optical/cosmetic faces: which surfaces must be clear / polish-ready
Chemical exposure: cleaners, alcohols, oils, UV environment
CTQs: mating bores/datum surfaces vs non-critical panels

Tolerances, Flatness, and Visual Expectations in Ultem

Ultem is dimensionally stable for a plastic, but CTQs still matter: thin walls can relax after machining, and glass-filled grades can show more texture. The most reliable route is CTQ-first tolerancing plus stress control (symmetric roughing and annealing when needed).

CTQ Topic	What to expect	How to get it
Flatness & warp risk	Use ribs; keep wall thickness consistent; rough symmetrically; consider stress relief for large plates	Controls post-machining movement and improves repeatability.
Holes & inserts	Call out true-position/diameter only where assembly requires it; consider metal inserts for repeated torque	Improves durability and reduces stripped threads in plastics.
Glass-filled surface texture	Define cosmetic faces; avoid over-specifying polished finish on 2300	Glass can print texture; polishing everywhere increases cost.
Cleaning/coolant compatibility	Avoid petroleum-based coolants when cracking risk matters; align cleaning agents to end-use	Reduces risk of stress cracking and cosmetic haze.
Standard vs tight tolerances	Use ISO 2768 medium for non-critical dimensions; tighten only CTQs	Keeps ultem pei tight tolerance machining cost-competitive.

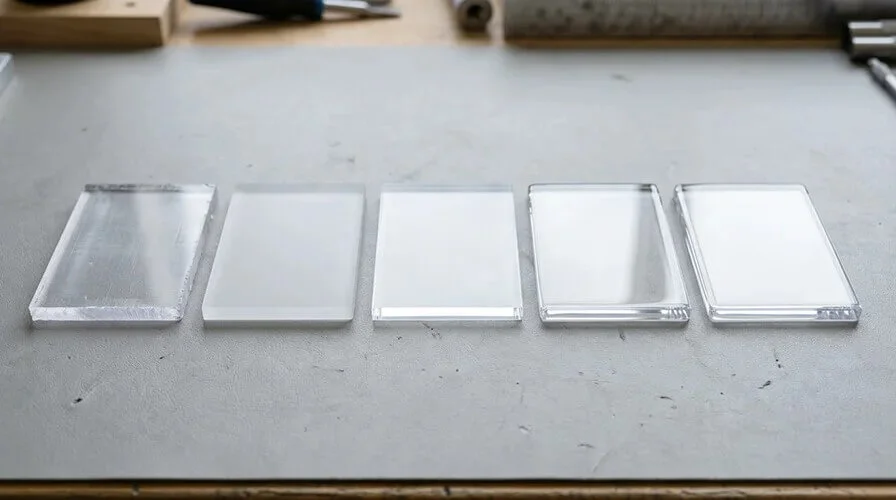

Polycarbonate surface finish samples showing as-machined, bead blasted matte, polished edges and glossy edge finishing

For clear PC, the finishing plan matters as much as the machining plan. Define what must be optical; keep everything else functional to control cost.

Post-Processing, Cleaning & Packaging (As Required)

Polycarbonate often goes into customer-facing or safety-facing assemblies. We treat scratch control and contamination control as part of the manufacturing process—especially for ultem cnc machining optical clarity applications.

Deburr + edge finishing

Clean, safe edges reduce crack initiation and improve appearance. We can edge-break consistently and protect corners for guard panels.

Polishing for transparency (targeted)

When transparency is critical, polishing can be applied to specific faces/edges. Mark optical areas so the finishing cost is applied only where it helps.

Protective packaging

Clear parts scratch easily. Film, separators, and clean packaging reduce handling marks—especially important for display-visible covers.

Common Polycarbonate CNC Machining Applications

These are typical RFQs for cnc polycarbonate light pipe machining, guards, and clear covers—where PC’s toughness and transparency are valuable.

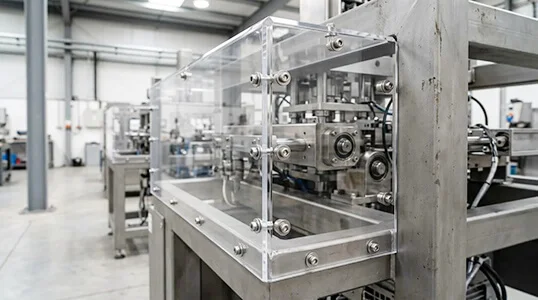

CNC machined clear polycarbonate safety guard panel mounted on a machine frame

Machine guards & safety covers

Clear guard panels and safety shields with mounting holes and edge finishing to reduce stress concentration.

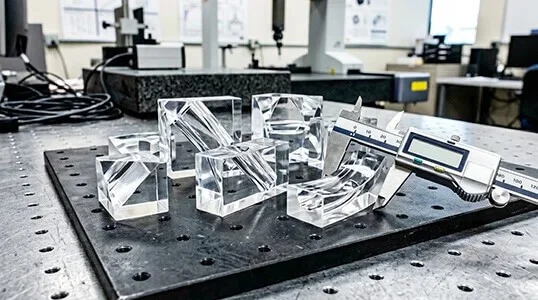

CNC machined polycarbonate light pipes and optical blocks with polished edges on an inspection table

Light pipes & optical blocks

Clear PC components for indicators and inspection windows—where edge clarity and surface control matter.

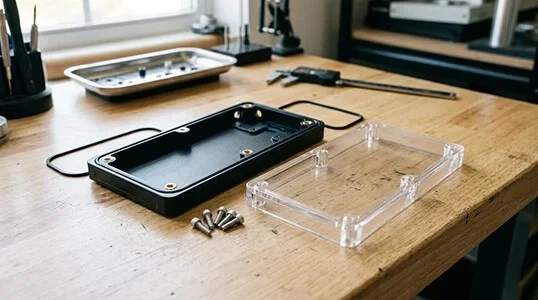

CNC machined polycarbonate clear cover with black PC enclosure base and gasket groove

Covers & protective housings

Transparent lids and covers that must survive impact and handling—often paired with gaskets and threaded hardware.

Polycarbonate Grades (If Specified)

If you already specify a particular PC grade (clear vs tinted, FR grades, UV-stabilized, or filled), we’ll match it. If not, we can recommend based on impact needs, optical requirements, and chemical exposure.

How to specify quickly

When requesting ultem cnc machining, include:

Grade intent: clear PC vs black PC; FR/UV requirements
Optical intent: which faces must be clear/polish-ready
Environment: chemicals/cleaners, UV exposure, temperature range

If you’re unsure, tell us the failure mode (cracking/crazing, scratching, haze, fit drift) and we’ll recommend.

FAQ: Ultem / PEI CNC Machining

Common questions about transparency, stress cracking, and material selection for ultem cnc machining.

Ultem (PEI) vs PEEK—what should I choose for CNC machining?

Choose Ultem (PEI) when you need high heat capability plus excellent flame/smoke performance and electrical insulation in an amorphous polymer. Choose PEEK when you need higher mechanical/wear performance and chemical resistance in a semi-crystalline polymer—often at higher material cost.

Which Ultem grade is best for machining—ULTEM 1000 or ULTEM 2300?

ULTEM 1000 is unfilled and often selected for electrical properties and clean machining. ULTEM 2300 is 30% glass-filled for higher stiffness and dimensional stability, but it’s more abrasive to tools and can show a more textured surface.

Do you recommend annealing for ultem CNC machining?

Yes for warp-sensitive or tight-tolerance parts. Annealing (stress relief) helps reduce machining-induced residual stress that can cause warping, cracking, or dimensional drift—especially when removing significant material or machining thin walls.

What tolerances are realistic for ultem pei tight tolerance machining?

Ultem can hold precise tolerances when the geometry supports stable fixturing. The most reliable approach is CTQ-driven tolerancing: hold tight datums/bores only where functional, and use standard tolerances elsewhere (e.g., ISO 2768 medium) to reduce cost and scrap risk.

Why can Ultem parts warp after machining?

Warping is usually driven by residual stress (from stock, machining heat, or asymmetric material removal), thin sections, and insufficient support during machining. Symmetric roughing, ribs, generous radii, and annealing/stress-relief planning help reduce risk.

What coolants should be used for PEI CNC machining services?

Many shops avoid petroleum-based coolants on Ultem because they may contribute to future cracking. Water-soluble coolants, air blast, or light mist strategies are commonly used; confirm compatibility with your cleaning and end-use environment.

What finishes are common for Ultem CNC machined parts?

Common finishes include as-machined, fine bead-blast (frosted), and targeted polishing on edges or cosmetic faces. Ultem is naturally amber and may appear slightly frosted after machining; define which faces are cosmetic vs functional to control cost.

What applications are a good fit for ultem machining for aerospace parts and electronics?

Typical applications include aerospace interior brackets, electrical connector insulators, medical sterilization fixtures/trays, semiconductor equipment insulators, and high-temperature housings where flame/smoke performance and dimensional stability matter.

Polycarbonate CNC Machining for Prototypes and Production

Batnon supports Polycarbonate/PC CNC machined parts for engineering teams worldwide—from rapid prototypes to repeat production. Share your optical/cosmetic intent, chemical exposure, CTQs, and quantity, and we’ll build a stress-aware machining and inspection plan so parts stay clear, crack-free, and cost-competitive.

For higher temperature or aggressive chemistry, use: High Performance Plastics CNC Machining.
