Automation Fixtures & Tooling

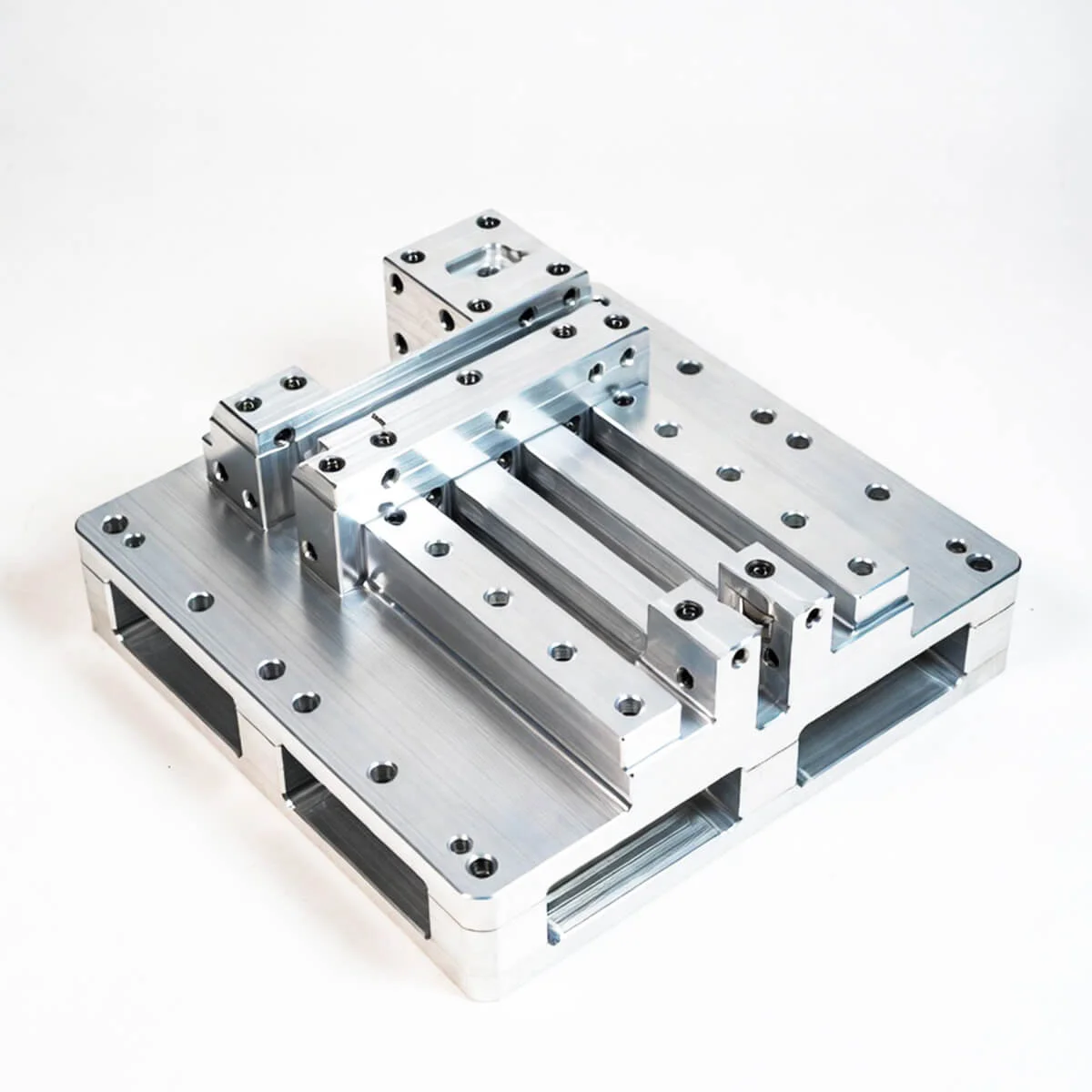

Changeover Plates
Application: Enable rapid changeover between different fixtures or tools in automation cells.
Material Examples: Aluminum 6061-T6, 7075-T6, Stainless Steel 304/316.
Tolerance / Finish Notes: Hole pattern tolerance ±0.01 mm, flatness ≤ 0.012 mm, surface finish Ra 0.8–1.6 µm.
Automation Fixtures & Tooling

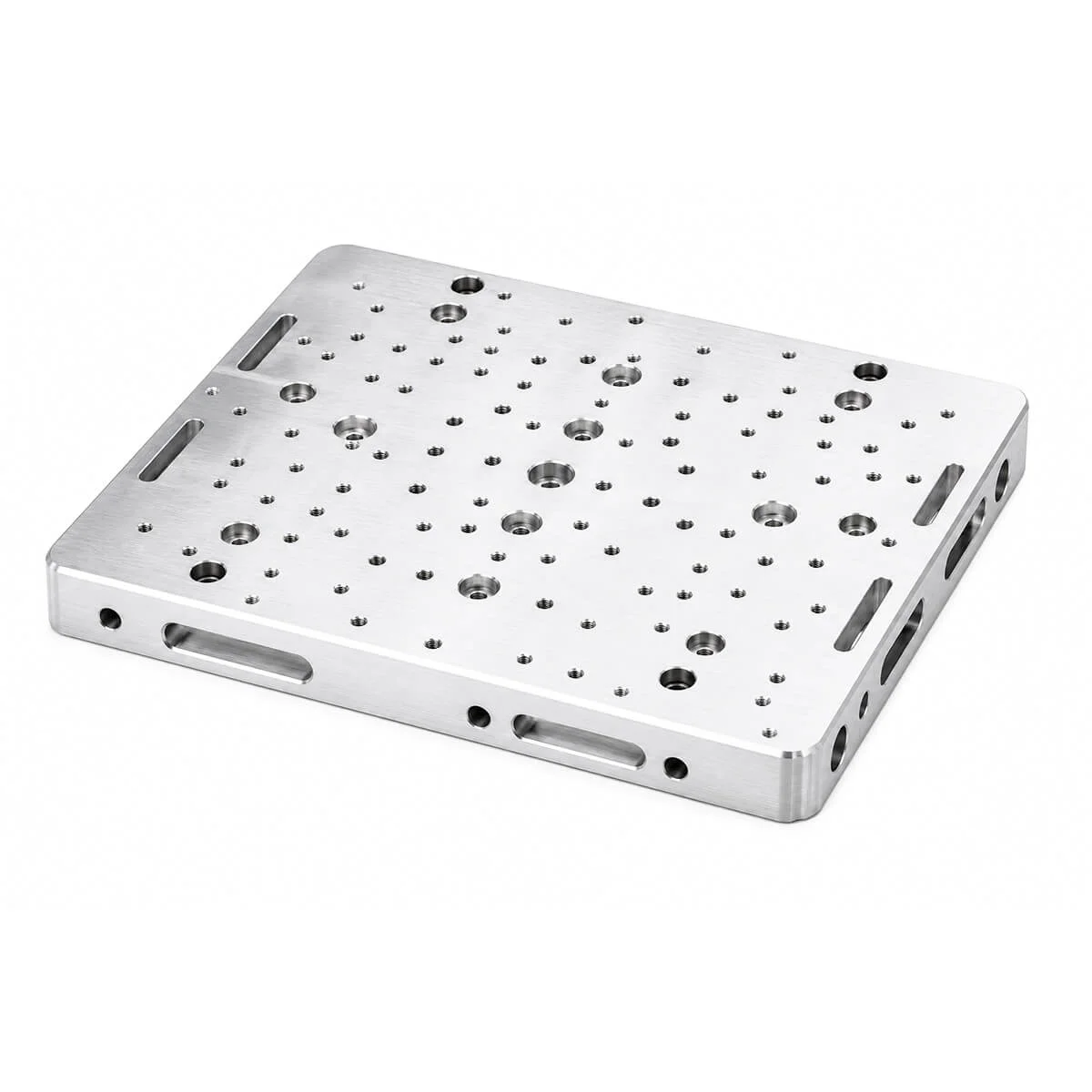

Fixture Plates
Application: Base platform for mounting workholding, sensors, and custom automation fixtures.
Material Examples: Aluminum 6061/7075, Stainless Steel.
Tolerance / Finish Notes: Overall flatness ≤ 0.015 mm, mounting hole tolerance ±0.01 mm, parallelism ±0.01 mm.
Automation Fixtures & Tooling

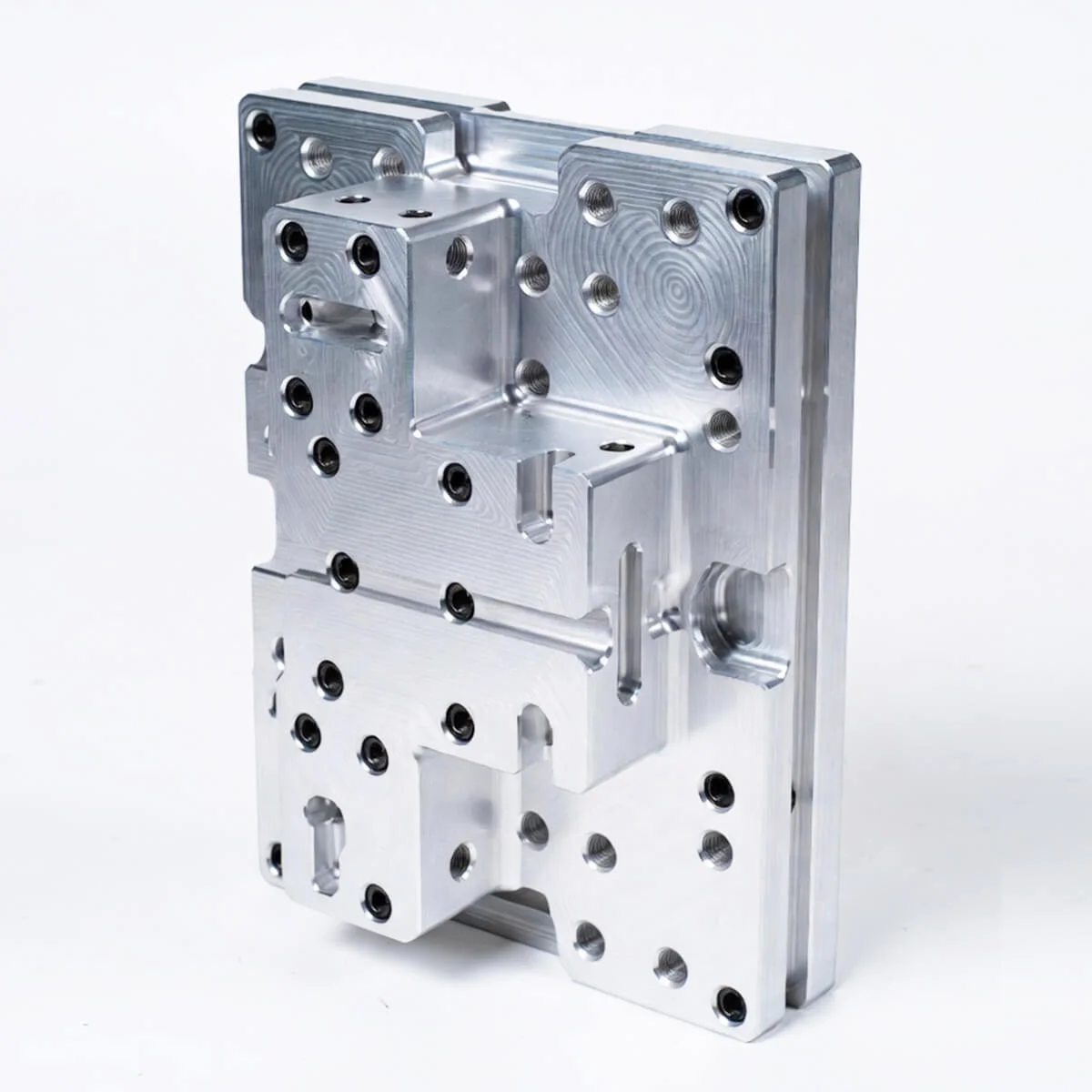

Gauge Plates
- Application: Used for go/no-go checking and dimensional verification in manufacturing processes.
- Material Examples: Aluminum 7075-T6, Tool Steel, Stainless Steel.
- Tolerance / Finish Notes: Critical feature tolerance ±0.005 mm, flatness ≤ 0.008 mm, surface finish Ra 0.4–0.8 µm.
Automation Fixtures & Tooling
Go/No-Go Tooling
Application: Fast verification of part dimensions and features during production.
Material Examples: Aluminum 7075, Hardened Steel, Stainless Steel.
Tolerance / Finish Notes: Functional gauge tolerance ±0.005 mm, surface finish Ra 0.4 µm, wear-resistant coating available.
Automation Fixtures & Tooling

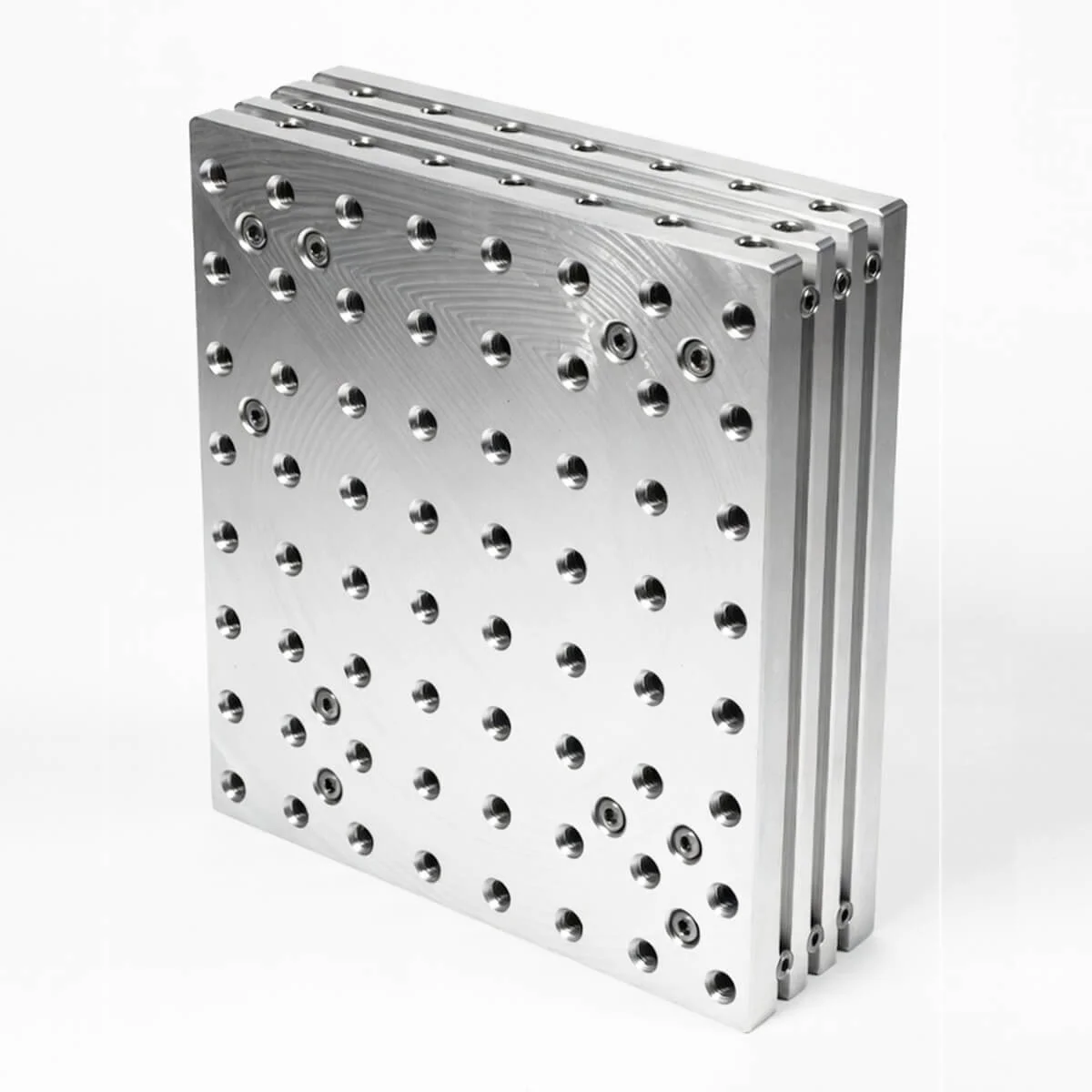

Grid Plates
Application: Modular base for building custom fixtures and workholding systems.
Material Examples: Aluminum 6061-T6, 7075-T6, Stainless Steel.
Tolerance / Finish Notes: Grid hole position ±0.01 mm, flatness ≤ 0.015 mm, surface finish Ra 0.8–1.6 µm.
Automation Fixtures & Tooling

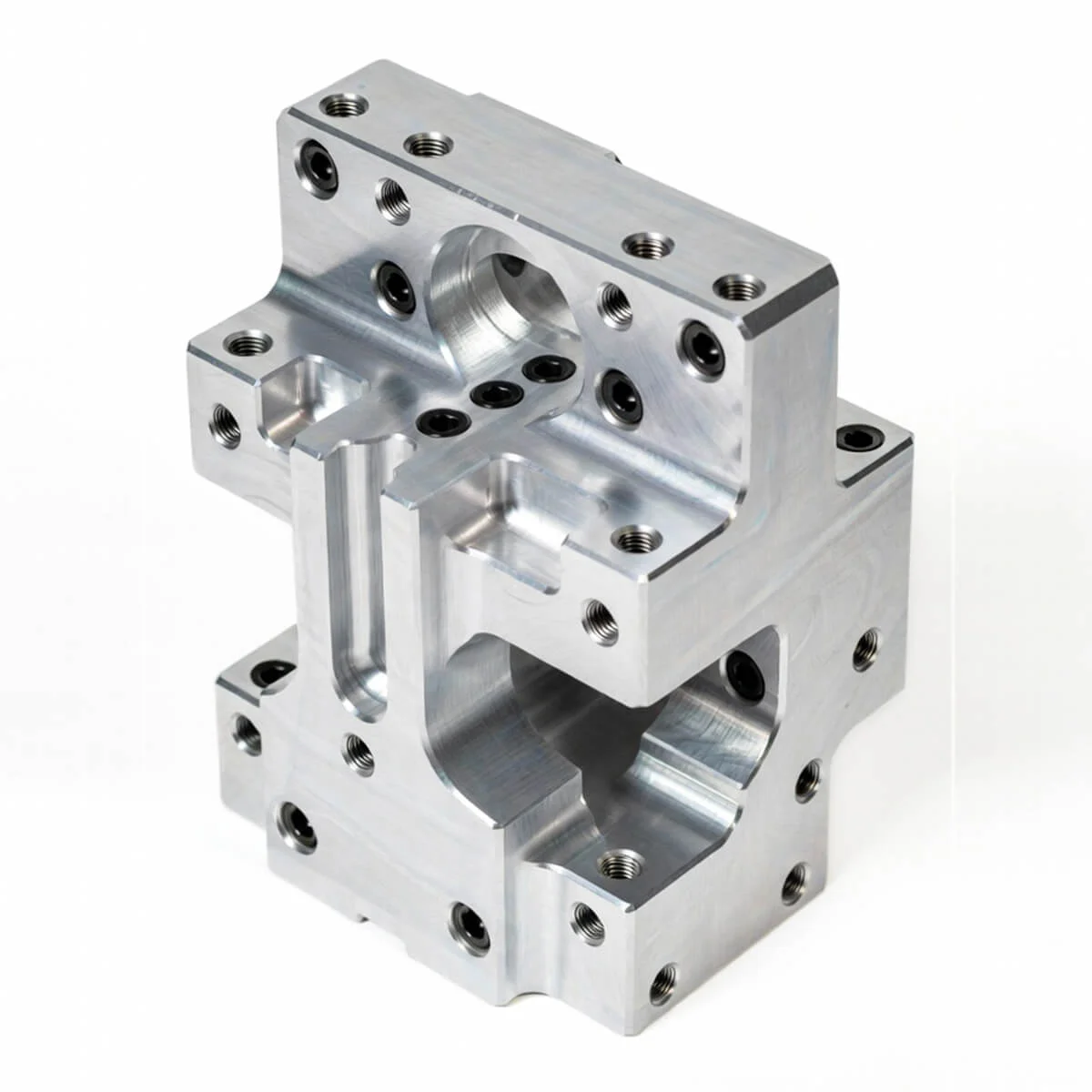

Locating Fixtures
Application: Ensure correct orientation and positioning of parts in automation processes.
Material Examples: Aluminum 7075-T6, Stainless Steel, Tool Steel.
Tolerance / Finish Notes: Locating pin holes ±0.005 mm, positional accuracy ±0.01 mm, flatness ≤ 0.012 mm.
Automation Fixtures & Tooling
Pallets
Application: Transport and locate workpieces between automation stations and machines.
Material Examples: Aluminum 6061/7075, Stainless Steel.
Tolerance / Finish Notes: Overall flatness ≤ 0.015 mm, locating feature tolerance ±0.01 mm, surface finish Ra 0.8 µm.
Automation Fixtures & Tooling

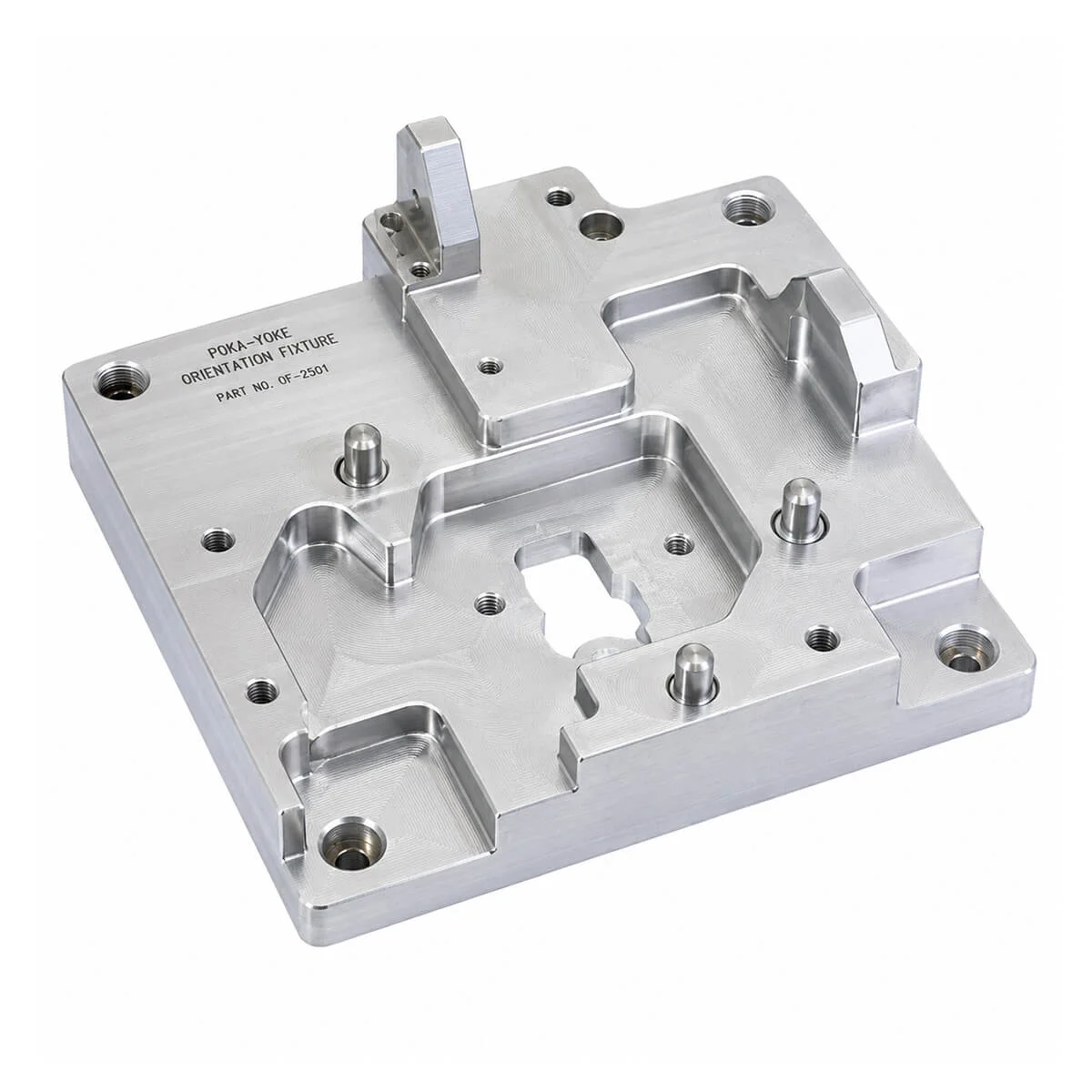

Poka-Yoke Orientation Fixtures
Application: Mistake-proofing in automated assembly and loading processes.
Material Examples: Aluminum 6061-T6, 7075-T6, Stainless Steel.
Tolerance / Finish Notes: Critical locating features ±0.005 mm, angular accuracy ±0.1°, surface finish Ra 0.8 µm.
Automation Fixtures & Tooling

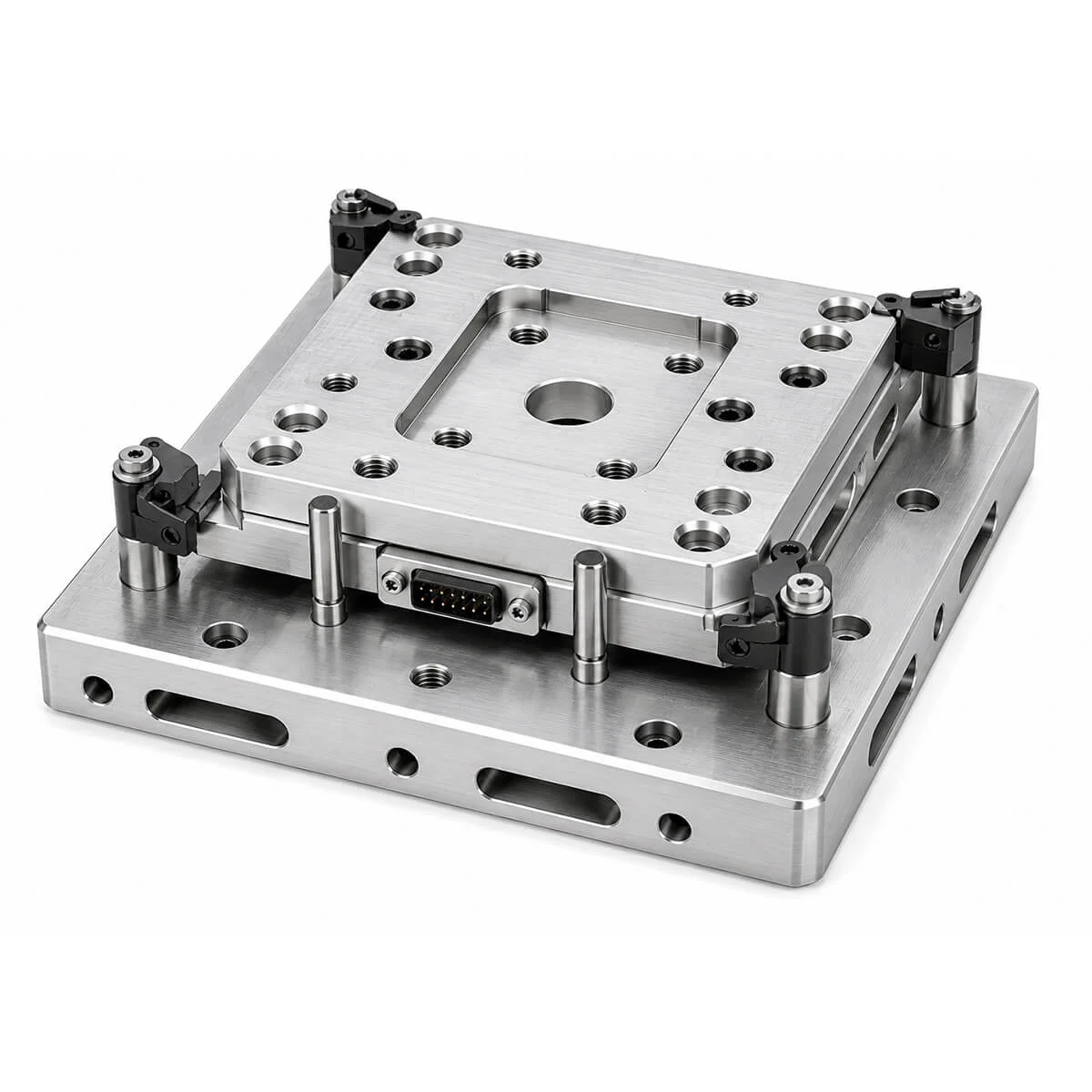

Quick-Swap Modules
Application: Enable rapid exchange of fixtures or end-effectors in flexible automation.
Material Examples: Aluminum 7075-T6, Stainless Steel.
Tolerance / Finish Notes: Locating repeatability ≤ 0.02 mm, flatness ≤ 0.01 mm, surface finish Ra 0.8 µm.
Robot Join

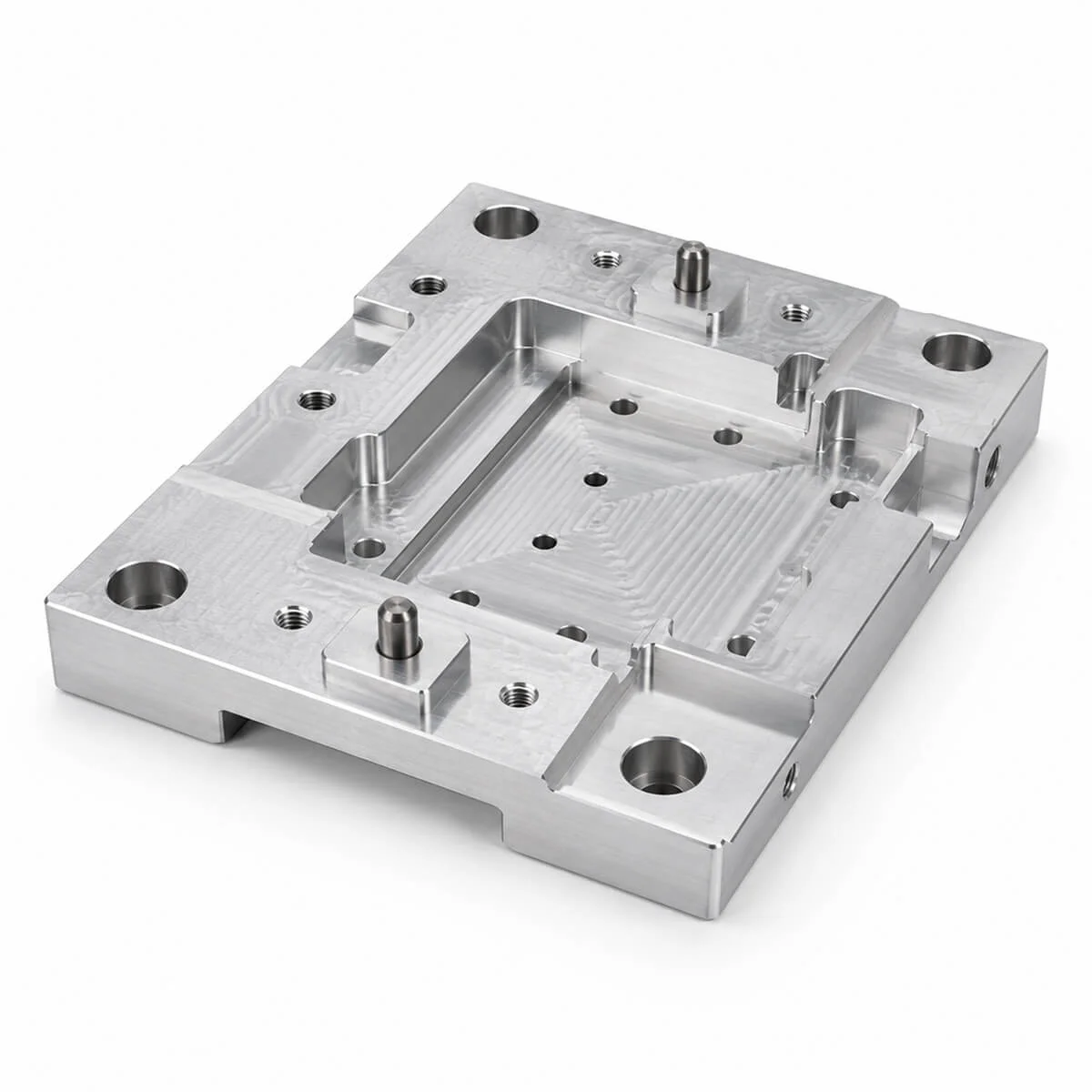

Workholding Nests
Application: Securely hold and locate parts during machining, assembly, or inspection.
Material Examples: Aluminum 7075-T6, Stainless Steel, Engineering Plastics.
Tolerance / Finish Notes: Contour tolerance ±0.01 mm, clamping surface flatness ≤ 0.008 mm, surface finish Ra 0.8 µm.
