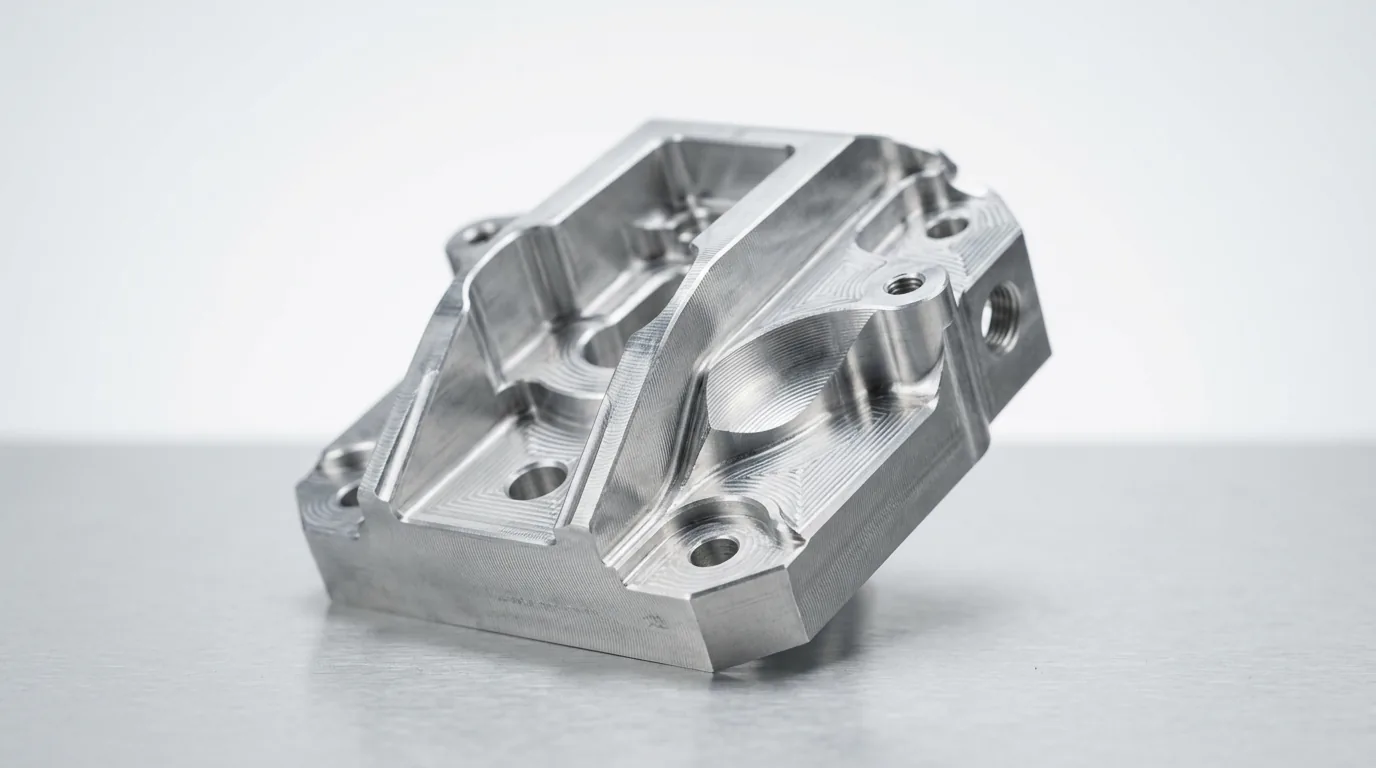

CNC Milling Guide: Design, Tolerances, Cost, And Practical Decisions
This guide helps you make confident milling decisions: choose the right process, set tolerances that match function, and avoid geometry that forces extra setups. If your goal is How to reduce CNC milling cost and lead time, start by marking CTQs, simplifying tool access, and selecting an inspection plan that matches approvals.
What You’ll Learn
Core rules like internal corner radius, pocket depth, wall thickness, and how they affect tooling and cycle time.
What You Can Prove
How to define datums, CTQs, and inspection evidence (CMM, first article checklist) for approvals.
What To Do Next
Upload CAD to get a process recommendation and a DFM-first machining plan for your part.
Tip: Start from CTQs. Tighten only what gates function, and leave everything else manufacturable.
Geometry Rules That Control Milling Cost And Quality
Milling outcomes are decided by tool access and stiffness. These rules are practical defaults used by many CNC suppliers. They support Pocket depth and wall thickness rules for CNC milling and Internal corner radius rules for CNC milling parts.
Internal Corner Radius
Inside corners will be radiused by the tool. Larger radii enable larger cutters and faster feeds.
Rule: Avoid “sharp internal corners”; redesign interfaces or use undercut features only when required.
Pocket Depth Ratio
Deep pockets force long tools, which increases chatter risk and slows cycles.
Rule: Keep pockets shallow when possible; split depth into steps or redesign the cavity.
Thin Walls
Thin walls flex and chatter; they can warp after finishing.
Rule: Use ribs, increase thickness, or change orientation to support machining stiffness.
Small Holes And Deep Holes
Micro holes and deep drilling add time and break tools more easily.
Rule: Use standard drill sizes and avoid very deep holes unless function requires it.
Design Rule Snapshot (Engineer-Friendly)
| Feature | Preferred Design Direction | Why It Matters |
|---|---|---|
| Pockets | Keep depth modest; avoid extreme depth-to-width | Reduces long tools, chatter, and cycle time |
| Internal Corners | Add generous radius or redesign interface | Enables larger tools and faster machining |
| Walls | Use ribs or thicker walls where loads exist | Improves stiffness, reduces vibration marks |
| Threads | Use standard thread sizes; call out thread spec in drawing | Improves tool availability and inspection clarity |
Reference basis used by many suppliers includes pocket depth/diameter ratios and tolerance practicality published by established CNC manufacturing guides.
Tolerances, Datums, And Inspection Evidence
Tight tolerance is not “better” by default. It is a tool you use on CTQs to control function. Many suppliers publish standard tolerances and recommend tightening only where necessary—because tighter tolerances increase cycle time, scrap risk, and inspection effort. This section supports CNC milling tolerances and surface finish guide decisions.
How To Apply Tolerances Without Overpaying
| What To Do | Why It Works | Typical Outcome |
|---|---|---|
| Mark CTQs (fit, seal, alignment) | Focuses machining + inspection on function | Lower cost without functional risk |
| Use clear datum scheme | Reduces setup ambiguity and stack-up problems | More repeatable assemblies |
| Loosen non-CTQ features | Enables faster tooling and fewer inspections | Shorter lead time |
| Match inspection evidence to approval | Avoids expensive “measure everything” plans | Quote reflects real requirements |
Evidence Levels Buyers Commonly Request
| Evidence | Best For | What You Provide |
|---|---|---|
| Basic Dimensional Check | Simple prototypes and non-critical fits | Key dimensions verified; deburr confirmation |
| CMM Inspection Report | Datum-driven geometry and CTQ bores | Measured CTQs with traceable equipment |
| First Article Checklist | Pilot builds and approvals | Ballooned drawing + characteristic verification |
If you need CNC milling inspection plan CMM and first article checklist support, the fastest path is to upload CAD and highlight CTQs.
Inspection-Friendly Design Moves
Use datums that can be probed, avoid hidden measurement features, and keep CTQ surfaces accessible. If it can’t be measured reliably, it can’t be approved reliably.
Cost And Lead Time Drivers In CNC Milling
Milling cost comes from setup + machining time + finishing + inspection. Quotes increase when suppliers must guess CTQs, datums, or surface finish. This section supports How to reduce CNC milling cost and lead time and CNC milling DFM checklist before RFQ intent.
Five Levers That Usually Reduce Cost
What To Provide For Fast, Accurate Quoting
| Input | Why It Lowers Risk Padding |
|---|---|
| CAD + 2D drawing for CTQs | Removes tolerance ambiguity and defines datums. |
| Quantity and lead time target | Enables the right process plan and batching strategy. |
| Material and acceptable alternates | Lets sourcing optimize availability and machinability. |
| Finish requirements and cosmetic zones | Prevents over-finishing non-functional faces. |
| Inspection evidence level | Aligns inspection time with your approval process. |
Three-Axis Vs Five-Axis: A Cost Reality Check
3-axis can be very cost-effective when your part completes in one or two stable setups. 5-axis can reduce cost when it replaces many setups, improves tool access, and avoids custom fixtures.
Common Hidden Adders
Very tight tolerances on non-CTQ faces, deep narrow pockets, long tool stick-out, and hard-to-measure geometry.
Materials And Finishes That Affect Milling Outcomes
Choosing materials and finish requirements early prevents rework loops. Some materials are harder to hold tight tolerances due to flexibility or machining behavior. This section supports Best CNC milling materials for prototypes and production and CNC milling tolerances and surface finish guide intent.
Material Selection Snapshot
| Material Family | Best For | Watchouts |
|---|---|---|
| Aluminum (e.g., 6061/7075) | General structures, housings, brackets, prototypes | Thin walls can chatter; define cosmetic zones |
| Stainless Steel | Corrosion resistance, wear, strength | Longer machining time; consider finish allowance |
| Tool Steel | Wear-critical fixtures and inserts | May require heat treat planning and finish machining |
| Engineering Plastics | Insulators, wear pads, lightweight components | Flex can make tight tolerances harder to hold |

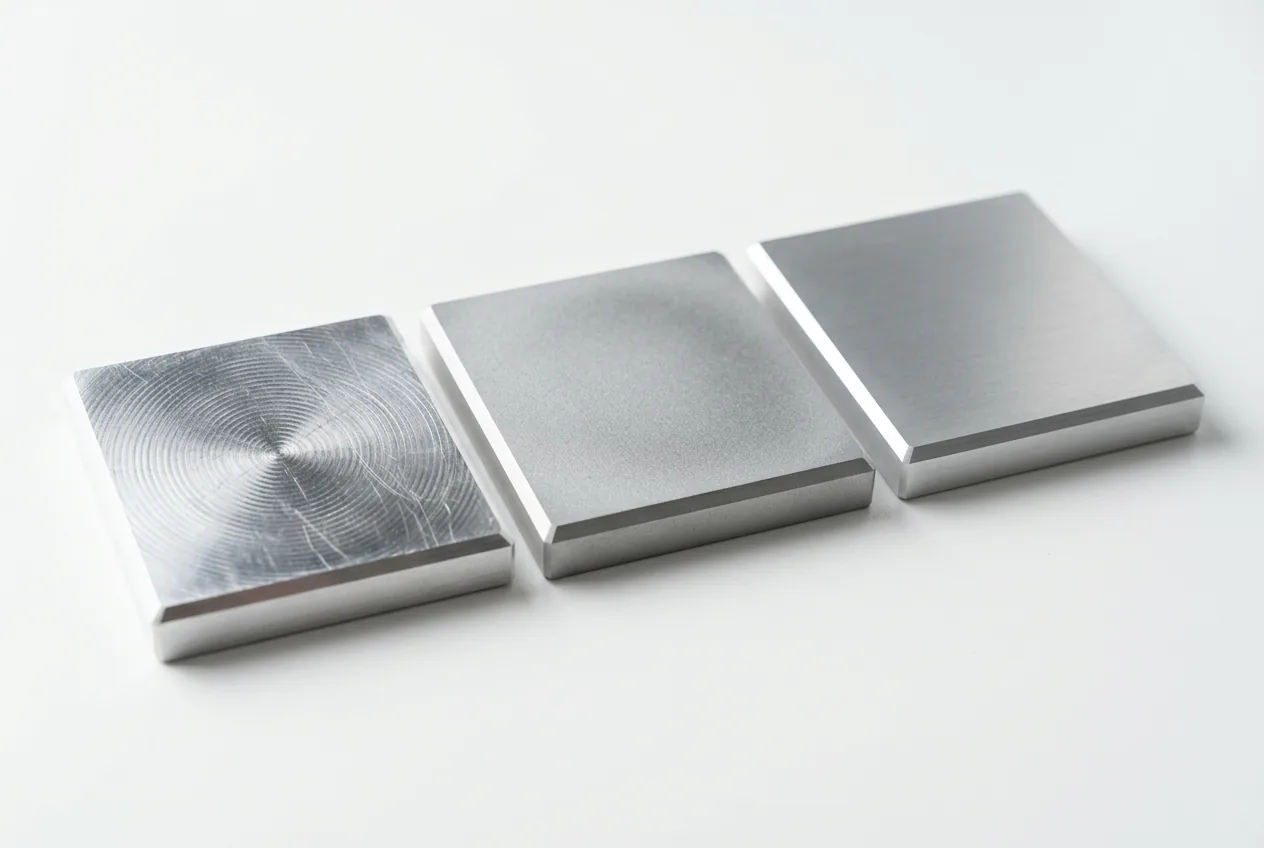

Finish Selection Snapshot
| Finish | When To Use | What To Specify |
|---|---|---|
| As-Milled | Functional prototypes; internal faces | Allow tool marks; define non-cosmetic areas |
| Bead Blast | Uniform matte cosmetics | Mask CTQ fits; maintain datums |
| Anodize | Wear/corrosion resistance on aluminum | Define thickness and mask critical fits if needed |
| Passivation / Plating | Stainless corrosion and protection | Surface requirement and masking zones |
Surface Roughness (Ra) In Plain Terms
Surface roughness is the “texture” left by cutting and finishing. For sealing, sliding, and bearing seats, specify roughness on the functional face only. For non-functional faces, avoid over-controlling finish.
Finish Allowance Rule
If you plan anodize, bead blast, or polish, reserve allowance on cosmetic faces and protect critical fits. That keeps CTQs stable after finishing.
Case Study: Milling Plan That Cut Rework And Improved Alignment

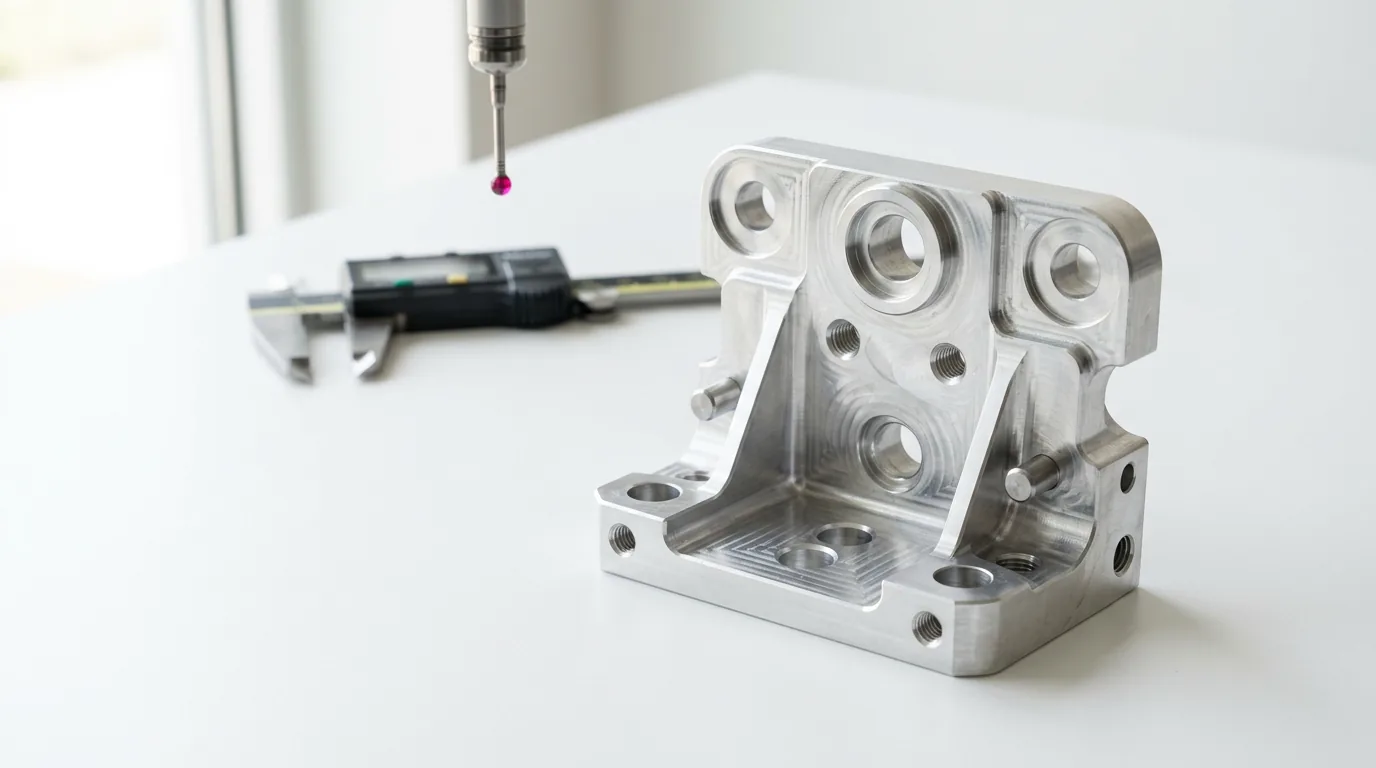

A customer needed a precision bracket/plate set where hole patterns and bearing seats had to align during assembly. The first prototype fit-check failed due to datum ambiguity and hard-to-inspect CTQs.
Problem
Multiple setups introduced small positional shifts, and the drawing did not clearly identify CTQs and datum references. Inspection effort increased but still did not prevent rework.
Solution
We clarified the datum scheme, marked CTQs (bearing seat and hole pattern), and revised geometry to improve tool access. The process plan reduced setup count and aligned inspection to the approval-critical features.
Result
First-article fit improved and the assembly aligned without hand fitting. Inspection became faster because CTQs were measurable and clearly defined.
Impact
Fewer rework loops, faster engineering approvals, and a cleaner path to repeat orders with stable process capability.
What Made It Work
Clear CTQs, fewer setups, and inspection that matches how the assembly is actually approved.
FAQ
Quick answers for engineers choosing milling, setting tolerances, and preparing quote-ready packages.
What Is The Difference Between CNC Milling And CNC Turning?
What Tolerances Are Realistic For CNC Milling?
How Do Internal Corner Radii Affect Milling Cost?
When Should I Choose 5-Axis Milling?
What Surface Finish Should I Specify?
How Can I Reduce Lead Time For CNC Milling?
What Should I Include In A Quote-Ready Package?
Can You Provide CMM Reports Or First Article Checklists?
Practical Notes For Buyers And Engineers
Batnon supports milling programs by turning requirements into a stable process plan: CTQs, datums, setup strategy, and inspection evidence. If you’re comparing suppliers, the fastest path is to share your CAD and highlight the interfaces that gate function—fits, seals, alignment, and bearing seats.
