About CNC Machining

Batnon’s CNC machining sets the industry standard for quality, delivery, punctuality, and customer satisfaction. Our commitment to excellence ensures that every project meets the highest expectations.

Our experienced engineering team devises optimal machining solutions for your components and parts, including CNC machining programs, machining processes, and inspection specifications. Operators input the machining program, operate the machine, and inspect the first part according to the machining plan, the whole process follows a standard precedure, ensuring a fast and efficient process.

Our in-line process quality control personnel continuously inspect the products to ensure that each part or component meets the highest standards and specifications.

1. What Is CNC Machining?

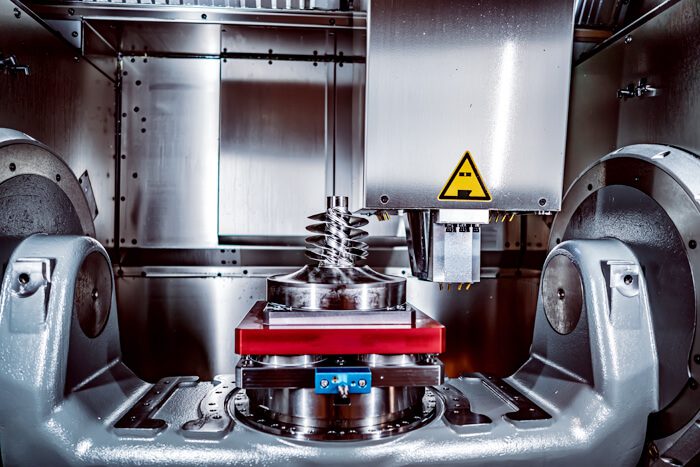

Batnon what is cnc machining - 1

CNC stands for Computer Numerical Control, a manufacturing method often referred to as CNC machining or manufacturing.

There is another similar term NC which refers to Numerical Control. Therefore, NC machining means Numerical Control machining.

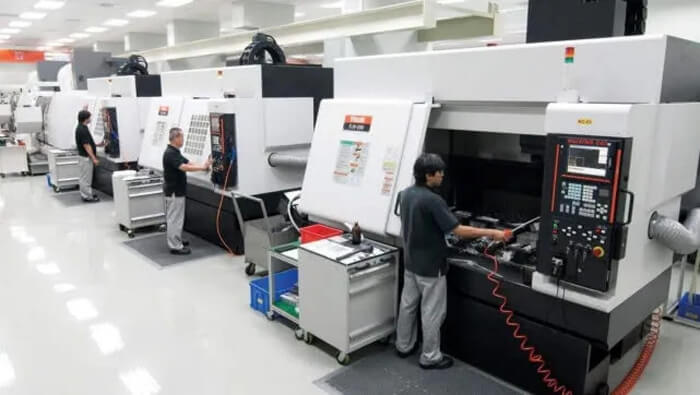

What is CNC machine?

A CNC machine is a computer-controlled device that integrates the functionalities of manufacturing machinery with a computer program control system. To create a part, the control system converts a drawing prepared by a machinist into G-Code instructions. These digital instructions drive and govern the machine’s actions and movements , enabling it to produce the desired part through either additive material processing or subtractive material processing methods. The manufacturing process is fully automated based on the programmed instructions, eliminating the need for manual intervention.

Batnon what is cnc machining - 2

2. What Dose CNC Machining Mean?

CNC machining, or CNC manufacturing, is a manufacturing process and method in which a machinist designs a computer controlled program and input it into a CNC machine which will subtract material from a workpiece with appropriate tools, to create a custom part.

This processing has become an important method for manufacturing a wide range of parts for its versatility, from gringder to lathe, from mill to CNC router. Advantage of CNC machining lies in it can accomplish effectively complicated manufacture in a single procedure which would require multiple machining operations. Therefore, increase efficiency, lower cost.

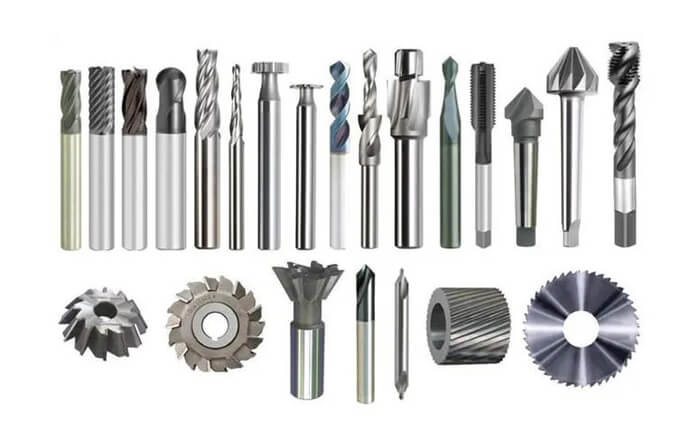

3. What is a Tool for CNC Machining?

Batnon what is cnc machining - 5

A tool in CNC machining refers to the cutter or blade mounted on the spindle of a CNC machine. It functions as a subtractive tool that removes material from the workpiece when the spindle rotates, driven by a motor. The rotational speed of the tool is controlled by the CNC machining program’s instructions.

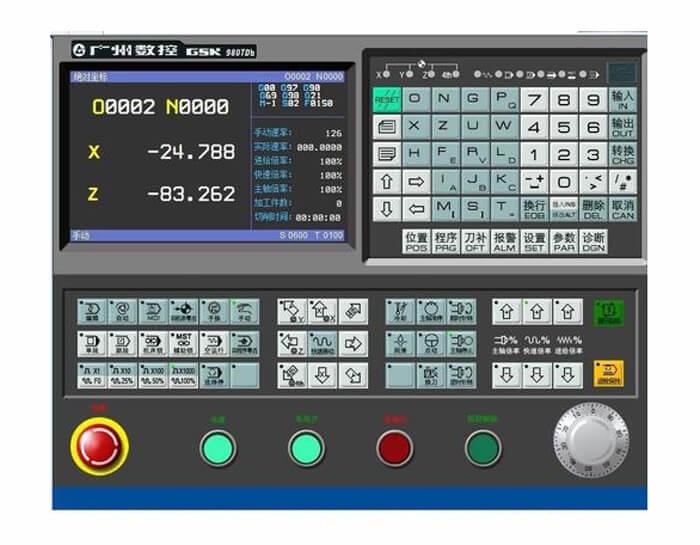

4. What is CNC Machining Software?

Batnon what is cnc machining - 4

CNC Machine can work out a desired part just because it can read a numeric code, which is decoded by a software from original product design. The said software is known as CAD-CAM, acronym of “Computer Aided Design & Computer Aided Manufacturing”.

Therefore, the function of CAD-CAM software is for turning the product drawing into a language for the CNC machine to execute.

Main information contained in the language is toolpath, speed, tool depth, etc. Such information will be transmitted to machine controller and drive motors run, CNC machining manufacture then starts.

5. What Are Involved In CNC Manufacturing?

To produce a desired part using CNC machining, the following preparations are essential:

1) Part Drawing: Designed using CAD software.
2) Programming: Creation of the CNC program, often in G-Code.
3) Workpiece: The raw material to be machined.
4) Tool: The cutter or blade for material removal.
5) Jig or Fixtures: To securely hold the workpiece in place.
6) Dimension Measurement Tools: Such as calipers, tape measures, and dial indicators.
7) Auxiliary Tools: For setup and adjustments, such as wrenches.
8) CNC Machine: The equipment to execute the machining process.
9) Stable Power Supply: To ensure consistent machine operation.

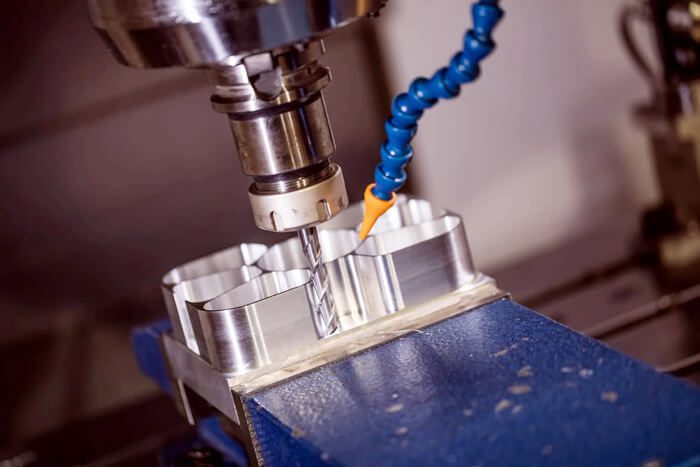

6. Advantages of CNC Machining to Conventional Machining

1 Feature CNC Machining Conventional Machining
2 Automation Fully automated, operated via computer software. Manually operated by a machinist.
3 Precision and Accuracy Extremely high precision, tolerances within ±0.001 inches. Lower precision, depends on operator skill.
4 Consistency Consistent results across large production runs. Variability in results due to human error.
5 Complex Geometries Capable of producing highly complex and intricate parts. Limited by the operator's ability and machine capability.
6 Speed and Efficiency High-speed operations, continuous production 24/7. Slower, requires more time for setups and adjustments.
7 Flexibility Easily programmable for different tasks and designs. Less flexible, requires manual changes and setups.
8 Setup Time Longer initial setup, but faster for repeat jobs Quicker initial setup, but slower for repeat jobs.
9 Cost Higher initial investment, but lower long-term costs for large runs. Lower initial investment, higher labor costs over time.
10 Skill Requirement Requires skilled programmers and operators for setup. Requires highly skilled machinists for operation.
11 Material Waste Minimizes waste through precise cutting and optimization. Higher material waste due to less precision.
12 Complexity of Parts Can handle multi-axis operations and complex shapes. Limited to simpler shapes and operations
13 Production Volume Ideal for high-volume production with consistent quality. Better suited for low-volume or one-off parts.
14 Maintenance Requires regular maintenance and software updates. Requires regular maintenance, less dependent on software.
15 Human Error Minimal human error due to automation. Higher possibility of human error.
16 Training Requires training in CAD/CAM software and machine operation. Requires training in manual machining techniques.
17 Prototyping and Customization Excellent for rapid prototyping and custom parts. Slower and less efficient for prototyping.

7. Precision, Efficiency and Versatility

CNC machining is being widely used in industrial production because its 3 advantages, they’re: precision, efficiency, and versatility. Here’s to explanation of them.

1) Precision of CNC Machining

  • High Accuracy and Consistency:
    The major advantage of CNC machining is from its high precision in producing parts. Tight tolerances can be achieved through CNC machining which is crucial for some application which needs exact specifications.
    CNC machine is controlled by program which is a product design file conversion into G Code that can be processed by CNC machine. CNC machines produces the same part with identical accuracy, and such accuracy can be maintained consistency throughout the production.
  • Advanced Software Integration:
    CNC machine runs CAD and CAM software and turns these digital designs into precision machine instructions.
    Therefore, no human error will happen, this ensures parts are made according to exact specifications.
    These softwares can be simulated on computer before actual production.

2) Efficiency of CNC Machining

  • A) high speed production
    CNC machining can operate in high speed, which will significantly reduce production time compared to conventional manual machining method. Therefore, it greatly enhances productivity for handling large-scale manufacture demand.
     CNC machining runs automatically and continuously, 24/7, least supervision, while maximizing output and efficiency.
  • B) Reduced Waste and Cost
    CNC machining can reduce waste as it precisely processes materials and minimizes error, least material waste means max material use efficiency. This will reduce product cost accordingly.
     Optimization of process procedure also helps to lower production cost as machinist can design a best tool pathway for whole production to achieve finish production in shortest time, which also a advantage in lower cost.
  • C) Scalability
    CNC machining is a good choice for scaling, both large volume runs and small batch can be cost effectively manufactured by CNC machining. After a design is programmed into machining language, additional units is economical and repeated.

3) Versatility of CNC Machining

  • Wide Range of Materials:
    CNC machining can be used for a wide range of materials, including metals (aluminum, steel, s.steel, copper, brass…), plastics (ABS, polycarbonate, nylon, acrylic, foam, PE, PP…), wood and bamboo. CNC machining is adaptive with many materials, allowing it suitable for various industries and applications.
    CNC machining can be used for mass production, also for prototyping piece with specific property tailored for intended use.

8. CNC Machines and Equipment in Batnon

At Batnon, we pride ourselves on offering top-tier CNC machining services through leveraging a diverse array of state-of-the-art CNC machines and advanced technology. Our comprehensive range of CNC equipment allows us to handle a wide variety of materials, manufacture complicated, high-precision parts tailored to your exact specifications.

State-of-the-Art CNC Machines: We utilize a variety of CNC machines to ensure we can meet all your machining needs. Our fleet includes:

  • CNC Mills: Ideal for detailed and intricate work, our CNC milling machines can produce components with exceptional precision and surface finish.
  • CNC Lathes: Perfect for creating cylindrical parts, our lathes deliver high accuracy and consistency, ideal for both simple and complex geometries.
  • Multi-Axis CNC Machines: Our 4-axis and 5-axis machines enable the production of complex parts with fewer setups, reducing lead time and improving precision.
  • CNC Routers: Ideal for cutting and shaping large sheets of material, our routers are perfect for wood, plastic, and composite machining.

Not limited on the above, for full machine and equipment list, go to Equipment and Machinery List.

9. Technology and Software in CNC Machining

At Batnon, our dedication is to delivering the highest quality CNC machining services. To achieve this, we employ the latest advanced technology and cutting-edge software so as to ensure precision, efficiency, and reliability in every project.

A) Automation and Robotics:
In order to maximize productivity and maintain consistent quality, we integrate automation and robotics into our CNC machining processes. Loading and unloading automatically, along with robotic arms, all these enable continuous operation and reduce lead times.

B) Cutting-Edge Software:

CAD/CAM Integration: We utilize the latest CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software to streamline our machining processes:

  • Advanced CAD Software: Such CAD software enables us to create highly detailed and accurate digital models of your desired parts before production starts, ensuring we have common understanding for a correct computerized part as you need.
  • Sophisticated CAM Software: Our machinist converts CAD models in computer into precise machine instructions language, designs optimized tool paths and machining parameters to enhance efficiency and reduce material waste.

ⅱ Simulation and Verification: Before machining begins, we use software to simulate of the entire machining process. This important procedure allows us to:

  • Identify and resolve potential issues before production starts.
  • Optimize machining strategies for improved speed and accuracy.
  • Ensure that each part meets your exact specifications.

C) Benefits of Our Technology

Enhanced Precision: By combining these advanced machines and sophisticated software, we are able to achieve tight tolerances and produce parts with exceptional accuracy.

Improved Efficiency: The automation driven processing and optimized tool paths minimize waiting time and material waste, thus, reducing production costs and lead times.

Versatility: Our technology allows us to handle a wide range of materials and produce parts with intricate geometries, making us an ideal partner for diverse industries and applications.

Consistent Quality: Through rigorous simulations, in-process monitoring, and final inspections, we maintain consistent quality and ensure every part meets your exact specifications.

Experience the Future of CNC Machining

At Batnon, we commit to innovation and excellence, which drives us to invest in the best technology and software available. This enables us to provide superior CNC machining services that meet the highest standards of quality and precision.

Get in Touch:

Have a need for a CNC machining part? Ready to experience the advantages of our advanced CNC machining technology? Contact us today to learn more about our services, request a quote, or discuss your project requirements with our expert team. We look forward to partnering with you to achieve your manufacturing goals.

10. Materials for CNC Machining

At Batnon, we handle a diverse range of materials to meet the unique needs of our clients. Each material offers distinct properties and advantages, making it suitable for specific applications. Here’s a comprehensive look at the materials we work with in our CNC machining services:

1) Metals

  • Aluminum
  • Steel
  • Stainless Steel
  • Brass
  • Copper
  • Titanium:
  • Other Alloys:

2) Plastics

  • ABS (Acrylonitrile Butadiene Styrene)
  • Polycarbonate
  • Nylon
  • POM (Polyoxymethylene or Acetal)
  • PTFE (Polytetrafluoroethylene or Teflon)
  • HDPE (High-Density Polyethylene)
  • Acrylic

3) Composites and Other Materials

  • Carbon Fiber
  • Fiberglass
  • Wood:

Choosing the Right Material

Best is not always the good, appropriate is the best. Selecting the appropriate material for your CNC machining project depends on various factors, including the desired properties, application, and budget. Our team of experts can help you choose the best material for your specific needs, ensuring optimal performance and quality, while within your budget.

Conclusion:

At Batnon, we are committed to providing high-quality CNC machining services using a wide range of materials. Whether you need precision metal parts, durable plastic components, or specialized composites, we have the expertise and technology to meet your requirements. Contact us today to discuss your project and discover how we can deliver the perfect solution for your detailed needs.

10. Finish and Surface Treatment

Our CNC machining services offer a comprehensive range of surface finish treatments, including:

Electrochemical Methods:
1. Electroplating
2. Oxidation

Chemical Methods:
1. Chemical conversion membrane treatment
2. Electroless plating

Hot Working Methods:
1. Hot dip coating
2. Thermal spraying
3. Hot stamping
4. Chemical heat treatment
5. Surfacing

Vacuum Methods:
1. Physical vapor deposition (PVD)
2. Ion implantation
3. Chemical vapor deposition (CVD)

Other Methods:
1. Electrophoresis
2. Electrostatic spraying
3. Laser surface treatment
4. Ultra dural technique
5. Electrophoresis and electrostatic spraying

11. Specific CNC Machining Services

At Batnon, we offer different CNC machining services designed to meet the diverse needs of for specific part from our clients across various industries. Here’s a detailed overview of the CNC machining services we provide:

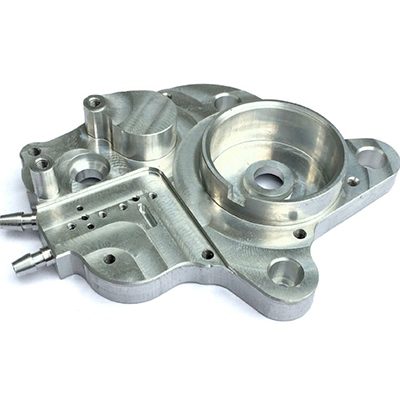

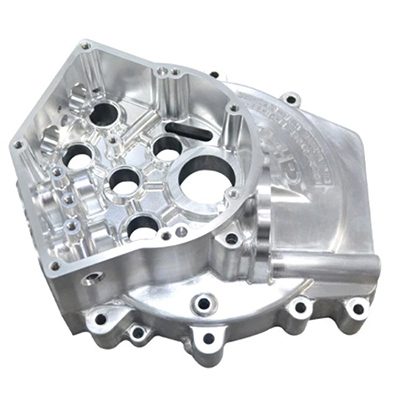

1) CNC Milling
Precision and Complexity: Our CNC milling services utilize advanced multi-axis milling machines capable of producing parts with intricate details and tight tolerances. Whether you need prototypes, custom parts, or high-volume production runs, our CNC milling is ideal for achieving exceptional precision, accurate tolerances, and superior surface finishes.
Materials We Handle:

  • Metals: Aluminum, steel, stainless steel, brass, copper, titanium, and more.
  • Plastics: ABS, polycarbonate, nylon, acrylic, and other engineering plastics.
  • Composites and other materials: Fiberglass, carbon fiber, and plywood.

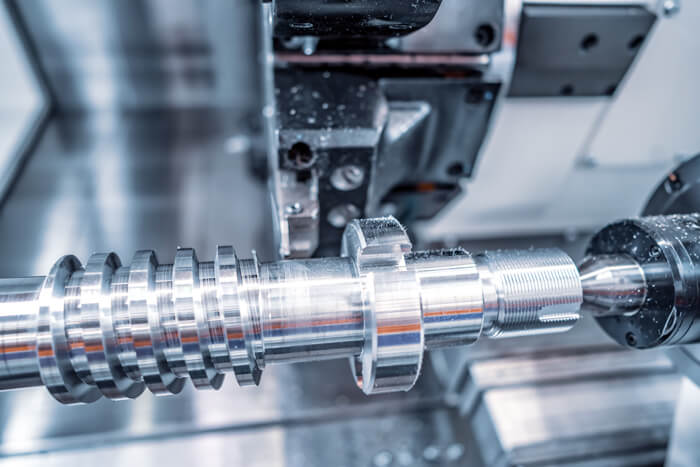

2) CNC Turning
High-Speed Production: CNC turning is preferable for producing cylindrical parts with high precision and efficiency. Our advanced CNC lathes handle both simple and complex geometric parts, making them suitable for a wide range of applications, from automotive components to medical devices.
Capabilities:

  • Producing shafts, bushings, and other cylindrical components.
  • High-speed and high-precision turning operations.
  • Threading, boring, and grooving services.

3) CNC Routing
Large-Scale Cutting: Our CNC routing services are ideal for cutting and shaping large sheets of material with precision and efficiency. CNC routers are particularly effective for working with wood, plastics, and composites, parts made perfectly for industries like signage, cabinetry, and other large-scale projects.
Applications:

  • Signage and display components.
  • Custom cabinetry and furniture.
  • Large panel and sheet cutting.

4) Multi-Axis CNC Machining
Complex and Intricate Parts: Our 4-axis and 5-axis CNC machines enable us to produce highly complicated and intricate parts while with fewer setups, reducing lead times and increasing accuracy. These machines are essential for industries that require detailed parts / components, such as aerospace, automotive, and medical sectors.
Benefits:

  • Ability to machine complex geometries and undercuts.
  • Enhanced precision and reduced setup times.
  • Efficient production of detailed and high-tolerance parts.

5) CNC Prototyping
Quick Pace Development: Our CNC prototyping services enable us to make fast prototypes for testing fitting and functionality before committing to mass production. This service is crucial for product development and refinement, ensuring that designs are optimized and meet your exact specifications.
Advantages:

  • Fast turnaround time for prototyping.
  • High precision and detail to replicate final product specifications.
  • Cost-effective solution for design testing and validation.

6) Custom CNC Machining
Tailored Solutions: We specialize in creating custom machined parts tailored for your specific demand. From one-off custom components to small batch productions or even large scale quantity, our custom CNC machining services provide the flexibility and precision needed to meet your unique needs.
Examples:

  • Custom gears and mechanical components.
  • Specialized parts for medical devices.
  • Custom enclosures and housings.

12. What More CNC Machining Services?

1) Drilling: Uses rotating drill bits to create holes in the workpiece. CNC drilling can perform precise hole placements and depths.

2) Grinding: Uses abrasive wheels to remove material and achieve fine surface finishes. CNC grinding is used for precision grinding of hardened materials.

3) EDM (Electrical Discharge Machining): Uses electrical sparks to erode material from the workpiece. CNC EDM is used for complex shapes and hardened metals.

4) Laser Cutting: Utilizes focused laser beams to cut through materials. CNC laser cutting is precise and can handle various materials including metals and plastics.

5) Additive Manufacturing (3D Printing): While not strictly CNC machining, it involves CNC-controlled processes to build parts layer by layer from digital designs. This includes technologies like selective laser sintering (SLS) and fused deposition modeling (FDM).

These CNC machining types encompass various techniques and technologies that cater to different materials, part geometries, and manufacturing requirements across industries.

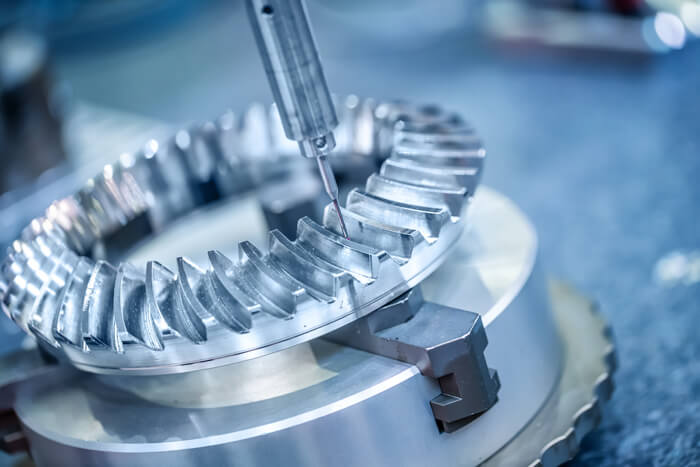

13. Why We Can Help?

We have a team of senior engineers with over 26 years of industry experience, supported by 40 engineers, 200 skilled machine operators, and 50 quality inspection professionals. Our clear and standardized production and operation processes encompass every stage: from engineering drawings, analysis, and preparation of processing procedures to material selection, production, quality inspection, surface treatment, packaging, and transportation. Additionally, each project’s progress can be monitored in real-time, ensuring transparency and efficiency.

1) Dedicated Team

We have a team of senior engineers with over 26 years of industry experience, supported by 40 engineers, 200 skilled machine operators, and 50 quality inspection professionals. Our clear and standardized production and operation processes encompass every stage: from engineering drawings, analysis, and preparation of processing procedures to material selection, production, quality inspection, surface treatment, packaging, and transportation. Additionally, each project’s progress can be monitored in real-time, ensuring transparency and efficiency.

2) Manufacture Capacity

Our state-of-the-art production facilities and machines are capable of handling a wide range of CNC processing tasks, including milling, turning, drilling, grinding, and cutting. With advanced 5-axis capabilities and custom-designed fixtures, we can efficiently process even the most complex parts and products. Our integrated processing system ensures comprehensive and precise execution of every project, meeting the highest industry standards.

3) Engineering capabilities

Before starting production on any project, we conduct thorough engineering and production analyses on all parts and products to determine the optimal processing technologies and procedures. Our production analysis identifies key challenges and potential difficulties in advance, allowing us to develop effective solutions. These pre-production evaluations ensure a smooth CNC manufacturing process and guarantee that the final products meet all desired specifications and quality standards.

4) Fast Online Quote

We accept drawings for CNC machining and files online and provide a detailed quotation for parts within 2 hours.

5) Dimensions and Tolerances

When CNC machining tolerance requirements are specified, we adhere to them rigorously to ensure that the parts meet all necessary specifications. In the absence of stated tolerances, we follow industry standards to guarantee high-quality and consistent production.

6) Comprehensive Finishing and Surface Treatment
We handle nearly all kinds of finishing and surface treatment that can be found in market.

7) Global Fast Delivery

We have established a comprehensive global logistics network, including express delivery, air transportation, sea transportation, and railway transportation. Additionally, we maintain local warehouses in the United States and Europe to offer same-day order placement and delivery services for local customers.

By partnering with reliable logistics providers, we ensure timely and safe delivery of goods.

We offer flexible delivery options, including factory delivery, door-to-door delivery, port delivery, warehouse delivery, and airport delivery, to meet diverse customer needs.
1.8) Drawing File Format

We support a wide range of design file formats, including STEP, STP, IGES, IGS, SLDPRT, 3DM, SAT, STL, OBJ, and X_T.

For more information on why CNC machining is the best method for creating customized parts and products, please refer to the article, ” Why CNC Machining Services Is Best Way For Custom Parts” .

14. Ensuring Excellence: Our Quality Control Processes and Standards

At Batnon, quality is the at the core of our production activities. We commit to excellence and implement rigorous quality control processes and standards in our CNC machining services. The measures we employs ensure we provide qualified parts. Here’s how we build and maintain quality system in our operations.

1) Comprehensive Quality Management System

Our Quality Management System (QMS) is built and designed to oversee every aspect of the production process, from initial design to final delivery. This system is certified to meet international standards, ensuring that our processes are consistent, efficient, and capable of delivering exceptional quality.

Key Elements of Our QMS:

  • Documented Procedures: All procedures are documented and followed meticulously to maintain consistency.
  • Regular Audits: Internal and external audits are conducted to ensure compliance and identify areas for improvement.
  • Continuous Improvement: We are committed to ongoing improvement through feedback, training, and the employment of the latest industry practices.

2) Advanced Inspection and Testing

Except QMS, Inspection and testing are crucial means in ensuring quality. We utilize advanced inspection and testing methods to verify the quality of our CNC machined parts at every stage of production.
Inspection Techniques:

  • Coordinate Measuring Machines (CMM): CMM is a measure tool for precise dimensions verification. Through CMM, we’re able to measure dimension up to +-0.0001mm. it also help us precisely measure complex geometries, allowing us understand precision level of the parts we produced.
  • Optical Comparators: we use these device to compare parts with designed drawing to verify accordance.
  • Surface Roughness Testers: surface finish quality is test so as to ensure it meets required standards.

Testing Procedures:

  • Dimensional Inspection: this is a basic inspection item for every part made, it ensures dimensional accuracy with design drawing.
  • Material Testing: material is tested before production to check its properties and quality is correct as required in design specifications.
  • Functional Testing: we implement functional on parts to ensure they perform as intended in application.

3) In-Process Quality Control

  • We integrate quality control into our production process to identify and address issues in real-time. Our in-process quality control includes:
    First Part Inspection (FPI): Before mass production begins, we perform FPI on the first part produced to ensure it meets all specifications.
  • Operator Inspections: our skilled operators conduct regular inspections to catch any deviations early during the machining process.
  • Statistical Process Control (SPC): SPC helps us to monitor and control the machining process, ensuring consistent quality throughout production.

4) Final Quality Assurance

Before any part leaves Batnon’s facility, it undergoes a final quality check. This comprehensive review ensures that each part meets all client specifications and quality standards.

  • Visual Inspection: Parts are visually inspected for surface defects, inconsistencies, and overall appearance.
  • Final Dimensional Checks: Additional dimensional inspections are conducted to verify accuracy.
  • Packaging Inspection: We ensure that all parts are packaged correctly to prevent damage during transportation.

5) Skilled and Trained Workforce

Our team of engineers, machinists, and quality control professionals are highly skilled and continuously trained in the latest industry standards and technologies. Such expertise ensures that we can maintain the highest levels of quality and practice systematic Quality Control in every project we undertake.

6) Customer Feedback and Satisfaction

We value customer feedback as a critical part of our quality control process. By listening to our clients and understanding their needs, we can continuously improve our services and ensure customer satisfaction.

  • Customer Surveys: We regularly conduct surveys to gather feedback on our products and services.
  • Quality Reviews: After we gather feedback from customers, these feedback are reviewed in quality meetings to identify areas for improvement.
  • After-Sales Support: Our dedicated support team is available to address any concerns and ensure client satisfaction.

Conclusion:

At Batnon, our unwavering commitment to quality control and standards ensures that we deliver the best CNC machining services available. From initial design to final delivery, we employ comprehensive and rigorous quality control measures to guarantee that every part meets the highest standards of precision and excellence. Trust us with your CNC machining needs, and experience the difference that quality makes.

Contact Us: To learn more about our quality control processes or to discuss your next project, please contact us today. Our team is ready to provide you with the highest quality CNC machined parts and exceptional customer service.

15. Success Cases

At Batnon, we pride on delivering high-quality CNC machining services for various industries. Below are a few case studies showcasing our successful projects and the tangible benefits we provided to our clients.

Case Study 1: Aerospace Component Manufacturing

Client: A large aerospace drone manufacturer in China

Challenge: The client needed high-precision components for their new drone model. The parts required complex geometries, light weight, durable propterties, and tight tolerances to ensure safety and performance standards.

Solution: We utilized our advanced 5-axis CNC machining capabilities to produce the intricate parts. Our engineering team conducted thorough engineer analyses and developed special custom fixtures to secure the parts during machining. We also used high-quality aluminum and titanium alloys to meet the stringent strength and weight requirements.

Outcome:
• Precision: Achieved tolerances within ±0.001 inches.
• Efficiency: Reduced production time by 20% through optimized machining processes.
• Quality: Delivered parts that passed all designated performance tests.
• Client Feedback: The client praised our attention to detail and the high quality of the delivered components, leading to a long-term partnership.

Case Study 2: Medical Device Prototyping

Client: A medical device startup from US

Challenge: The client needed rapid prototyping of a new medical device to accelerate their product development cycle. The prototypes required biocompatible materials and precise fitting with other components to ensure functionality and safety.

Solution: We collaborated closely with the client to understand their design specifications and material requirements. Using our CNC milling and turning machines, we produced prototypes from medical-grade stainless steel and PEEK plastic. Our quality control team performed rigorous inspections to ensure each prototype met the necessary standards.

Outcome:
• Speed: Finished high-quality prototypes within two weeks.
• Precision: Fabricated parts within tight tolerances to ensure proper device functionality.
• Compliance: materials and manufacture processes complied medical industry regulations.
• Client Feedback: The client successfully used the prototypes for clinical trials and praised our fast response and expertise in meeting their close timeline.

Case Study 3: Automotive Performance Parts

Client: A high-performance automotive parts manufacturer in China

Challenge: The client required custom performance auto modification parts for a new line of high-performance vehicles. The parts needed to withstand extreme conditions and provide superior performance.

Solution: We utilized our advanced CNC turning and milling machines to produce the parts from high-strength steel and aluminum alloys, plus heat-treatment for the steel part for even stronger hardness and durability. Our team designed custom tooling and fixtures to ensure precise machining and consistent quality. We also performed thorough testing to validate the parts’ performance under extreme conditions at home Batnon.

Outcome:
• Performance: Produced parts with superior strength and durability, enhancing vehicle performance.
• Consistency: Achieved consistent quality across large production runs.
• Client Feedback: The client reported significant improvements in vehicle performance and reliability, leading to increased sales and customer satisfaction.

Case Study 4: Consumer Electronics Enclosures

Client: A consumer electronics company from Germany
Challenge: The client needed aesthetically pleasing and durable enclosures for their new line of electronic devices. The enclosures required precise cutting and machining to accommodate intricate internal components and connectors.

Solution: We adopted slight improvement on customer’s initial design after communication with customer, used our CNC milling machines to produce the enclosures from high-quality polycarbonate and aluminum sheet materials. Our surface treatment processes, including sandblasting and anodizing, provided a premium finish. Our rigorous quality checks ensured that each enclosure met the client’s design and functional specifications.

Outcome:
• Aesthetics: Delivered enclosures with a high-quality finish and precise dimensions.
• Durability: the enclosures could withstand daily use and environmental factors under damp and salt condition..
• Client Feedback: The client praised the enclosures’ quality and appearance, contributing to the successful launch of their new product line.

Conclusion:

The above case studies highlight our ability to deliver high-quality CNC machining services across various industries. Our advanced technology, skilled team, and commitment to excellence enable us to meet our clients’ unique needs and exceed their expectations. Contact us today to learn more about how we can support your next project with our CNC machining expertise.

16. Testimonials

A fantastic metal working company, 10/10 customer service and fantastic value… I would highly recommend for custom motor prototype parts

customer testimonial on Batnon -1

Mr. Sean O’Brien

Manager Director

I LOVE the door openers. They look great and appear to be of high-quality. I have already told some of my friends about your company. Hopefully, they will also place orders with you. I look forward to doing business again. You were very responsive and professional. A real joy to work with.

customer testimonial on Batnon -2

Edward Zeidan

CEO

The parts were checked and are all good,I like the finish and packing over all good quality,we are happy with your work. Please convey it to your team.look forward in working with you in future also.

customer testimonial on Batnon -3

Cathal Barber

Owner

17. Factors Influencing Pricing for CNC Machining

When you consider CNC machining for parts in your projects, the following factors should be taken into account. Understanding these factors can help you make informed decisions and manage your budget effectively. Here are the key elements that influence pricing for CNC machining:

1) Material Selection

Material Cost:

  • Different materials have varying costs. Metals like titanium or specialty alloys are more expensive than common metals like aluminum or steel. Similarly, engineering plastics can be more costly than standard plastics.

Machinability:

  • Some materials are easier for machining than others. Materials that are difficult to machine, such as hardened steels or certain composites, require more time and specialized tools, increasing the cost.

2) Part Complex Geometries

Design Intricacy:

  • Parts with complex geometries, tight tolerances, or intricate features require more machining time and sophisticated equipment, thus higher costs.

Number of Features:

  • The more features in a part, such as holes, slots, or threads, the more operations are needed, these will increase machining time and cost also.

3. Tolerances and Precision

Tight Tolerances:

  • Parts with tight tolerances need slower machining speeds, more precise tooling, and additional quality control measures, all of which add to the cost.

Surface Finish:

  • Achieving high-quality surface finishes requires additional machining processes and time, increasing the overall cost accordingly.

4) Production Volume

Quantity:

  • Higher production volumes can reduce the cost per part due to economies of scale. However, low-volume or one-off production runs are typically more expensive per unit because setup costs are spread across fewer parts.

Batch Size:

  • Larger batch sizes often lead to cost savings due to reduced setup times after spreading across whole batch and more efficient use of materials and machinery.

5) Machining Time

Cycle Time:

  • Cycle time, the time required to machine each part, directly affects the cost. Longer cycle times due to complex geometries or hard-to-machine materials will increase the price.

Setup Time:

  • Initial setup time for the CNC machine, including programming and setting up fixture, is a fixed cost that is amortized over the production run. Shorter runs will have a higher per-unit cost due to the setup time.

6) Tooling and Fixtures

Tooling Costs:

  • Custom tooling and fixtures needed for specific projects add to the initial cost. High-wear materials or complex parts may require more frequent tool changes or specialized tools. Therefore, resulting higher production cost.

Fixture Design:

  • Custom fixtures designed to hold parts during machining are necessary for complex or precision parts, increasing the initial setup cost.

7) Post-Processing Requirements

Secondary Operations:

  • Additional processes such as heat treatment, sandblasting, anodizing, powder coasting, or assembly add to the overall cost. Each secondary operation requires additional time, materials, and sometimes specialized equipment.

Quality Control:

  • Extensive quality control measures, including in-process inspections, final inspections, and testing, will increase the overall project cost.

8) Lead Time

Rush Orders:

  • Expedited services often come with a first production arrangement. Short lead times require prioritizing the job, which can disrupt normal production schedules and increase costs.

Standard Lead Times:

  • Projects with flexible timelines can be scheduled more efficiently, potentially reducing costs.

9)Labor Costs

Skilled Labor:

  • The experience and skill level of the machinists and engineers involved affect the cost. Highly skilled labor ensures better quality but may come at a higher price.

Conclusion:

Pricing for CNC machining services is influenced by a combination of material costs, part complexity, production volume, machining time, tooling and fixtures, post-processing requirements, lead time, labor costs. By understanding these factors, you can better anticipate the costs associated with your CNC machining projects and make decisions to optimize your budget. Contact us at Batnon for a detailed quote and consultation tailored to your specific needs for your project.

18. FAQs

1) What Is CNC Machining?
CNC machining is a manufacturing process that uses computerized controls (NC) and machine tools to subtract materials from a workpiece to create custom-designed or desired parts, the materials of the workpiece might be metals, non-metals or composites. Features and advantages of CNC machining are shown by ensuring high precision and repeatability in manufacturing various parts and components.

2) What Materials Can You Work With?
We have expertise in machining a wide range of materials including metals (such as aluminum, steel, stainless steel, brass, copper, titanium, and their alloys) and plastics (such as ABS, acrylic, nylon, and PTFE, Polycarbonate, Delrin), as well as some engineering-grade materials suited to specific industrial requirements.

3) What Industries Do You Serve?
Our CNC machining services cater to diverse industries including aerospace, automotive, electronics, medical devices, telecommunications, consumers, electric, and more. We have the capability to meet the stringent requirements of various sectors that demand precision part, tight tolerances, and quality.

4) What Design File Formats Do You Accept For Machining?
We accept a variety of design file formats, these include STEP, IGES, DWG, DXF, STL, and PDF. Our experienced team can work with your preferred format to ensure it’s seamlessly integrated into our CNC machining process.

5) What Tolerances Can You Achieve?
Typically, we can achieve tolerances up to ±0.008 mm (0.0003 inches). Our CNC machining capabilities allow us to achieve tight tolerances depending on the material and design specifications, ensuring precise and consistent manufacturing of parts.

6) What Is The Typical Lead Time For CNC Machining Projects?
Lead times can vary based on project complexity, material availability, and order quantity. We strive to provide fast production lead times and will work closely with you to meet your project timelines. For specific inquiries, please contact our sales team.

7) Do You Offer Both Prototyping And Production Runs?
Yes, we provide both prototyping and production machining services. Whether you need a single prototype or a large volume production run, our flexible manufacturing arrangement and skilled machinists ensure high-quality results for every project phase.

8) How Do You Ensure Quality Control In CNC Machining?
We have stringent and systematic quality control practice in place throughout our manufacturing facility. From in-coming material inspection to final inspection of machined parts, we utilize advanced inspection tools and equipment, and techniques to ensure that all components and parts we produced meet your specifications and quality standards.

9) Do You Provide Finishing Services For CNC Machined Parts?
Yes, we offer finishing services, these include: anodizing, sandblasting, polishing, silkscreen printing, plating, painting, powder coating, and more. These services are designed to provide functional and aesthetic enhancements to machined parts to meet your specific requirements.

10) How Can I Request A Quote For My CNC Machining Project?
To receive a quote, simply submit your CAD file or technical drawings through our online quote request form as below, or contact us by email. Necessary info needed are: design file, material, batch quantity, finish and surface treatment. Our team will review your project details and provide a comprehensive quote based on your specifications and requirements. For further assistance, feel free to contact us directly.

18. Project Gallary

Batnon CNC machining part - 43
Batnon CNC machining part - 45
Batnon CNC machining part - 53
Batnon CNC machining part - 10
Batnon CNC machining part - 11
Batnon CNC machining part - 22
Batnon CNC machining part - 25
Batnon CNC machining part - 26
Batnon CNC machining part - 39
Batnon CNC machining part - 33
Batnon CNC machining part - 36
Batnon CNC machining part - 37

Fast Quote Within 12 Hours!

For inquiry or questions, please send your message,  we’ll respond soon!

Seraphinite AcceleratorBannerText_Seraphinite Accelerator
Turns on site high speed to be attractive for people and search engines.
